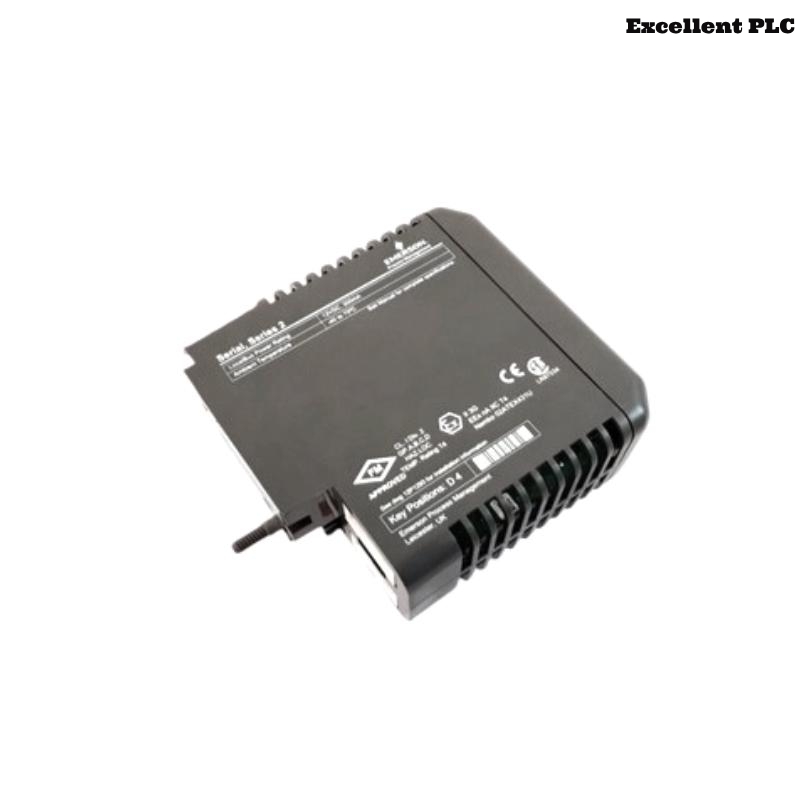

The Emerson VE4003S2B1, catalog number 12P3270X022, is a 16-channel Discrete Input (DI) Card engineered for use in the Emerson DeltaV™ DCS system. This module is a core component of the DeltaV I/O subsystem, offering reliable and high-speed acquisition of digital input signals from field devices such as limit switches, push buttons, and contact relays.
Designed with field diagnostics, robust electrical isolation, and modular scalability, the VE4003S2B1 provides unmatched flexibility for discrete signal monitoring in critical industrial automation environments. It supports both NAMUR and dry contact inputs, ensuring compatibility with a wide range of devices across multiple industries.
Technical Specifications
| Parameter | Description |
| Model Number | VE4003S2B1 |
| Catalog Number | 12P3270X022 |
| Type | DeltaV Discrete Input (DI) Card |
| Number of Channels | 16 Discrete Input Channels |
| Input Voltage Range | 18–30 VDC (Nominal 24 VDC) |
| Input Type | Dry Contact / NAMUR |
| On/Off Thresholds | ON > 10V, OFF < 5V (for Dry Contact) |
| Input Isolation | Optical isolation between channels and system |
| Update Rate | <1 ms per channel |
| Diagnostics | Input status, open wire detection (NAMUR) |
| Redundancy | Supports redundant I/O configurations |
| Hot-swappable | Yes |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Power Consumption | Approx. 3.5 W |
| Mounting | DeltaV I/O carriers |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Weight | 0.4 kg |
| Certifications | CE, ATEX, IECEx, CSA, UL, FM |
| System Compatibility | Native support for Emerson DeltaV™ systems |
Applications
The Emerson VE4003S2B1 DI card is widely used in discrete control applications requiring high reliability and signal integrity, including:
-
Oil & Gas Terminals – Monitoring valve and switch status in hazardous zones
-
Chemical Plants – Tracking actuator and process interlock status
-
Power Generation – Interfacing with breaker and protective relay signals
-
Water & Wastewater – Monitoring pump start/stop commands and alarms
-
Food & Beverage – Integrating with packaging machine logic and sensor inputs
-
Pharmaceutical – Cleanroom interlocks and access control inputs
Product Advantages
Rapid Response Time: Less than 1 ms per channel ensures fast reaction to digital events.
Field Diagnostics: Integrated health monitoring and wire break detection (NAMUR).
Channel Isolation: Improves reliability by preventing signal interference and cross-talk.
Universal Compatibility: Accepts dry contact or NAMUR inputs for broader device integration.
Seamless DeltaV Integration: Plug-and-play setup within the DeltaV system architecture.
Compact Modular Design: Optimized for tight cabinet installations.
Hot-swappable Capability: Enables easy maintenance without system shutdown.
Certified for Hazardous Areas: Ensures safe deployment in demanding industrial environments.
