Product Introduction

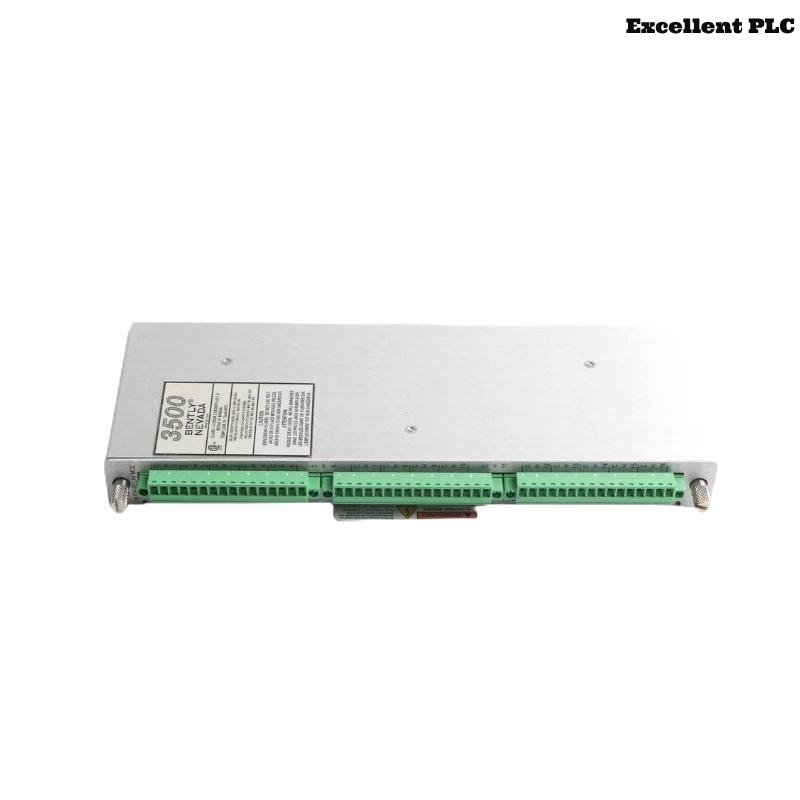

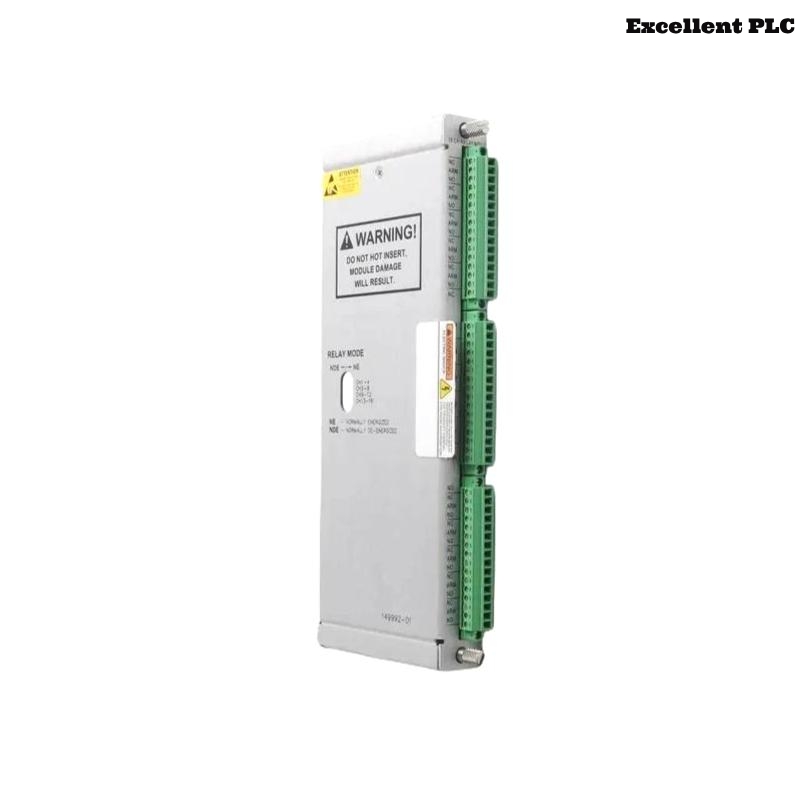

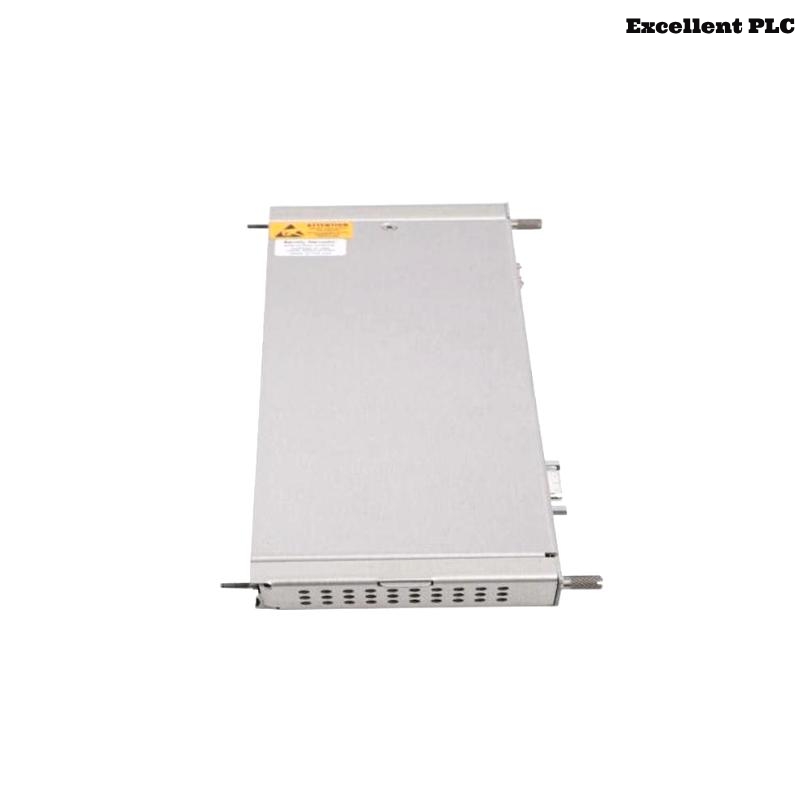

The Bently Nevada 3500/33-01-00 149992-01 is a full-height, 16-channel relay output module designed for the 3500 Machinery Protection System. It provides 16 relay outputs, each of which can be independently programmed to perform voting logic and alarm drive logic. This module enhances machinery protection by enabling complex control strategies and ensuring reliable operation.
Product Specifications
| Parameter | Details |
| Model Number | 3500/33-01-00 |
| Part Number | 149992-01 |
| Description | 16-Channel Relay Output Module |
| Relay Channels | 16 independent SPDT relays |
| Relay Contact Rating | 5 A @ 24 VDC / 250 VAC resistive load |
| Relay Life | ≥10,000 operations (resistive load) |
| Alarm Drive Logic | Configurable using AND/OR logic |
| Voting Logic | Supported for each relay output |
| Mounting Position | Any slot to the right of the TDI Module in the 3500 rack |
| Power Consumption | 5.8 Watts typical |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 0% to 95% non-condensing |
| Certifications | CE, CSA, ATEX, IECEx, GOST |
| Dimensions | 241 x 24.4 x 99.1 mm |
| Weight | 0.4 kg |
Product Applications
-
Machinery Protection Systems: Provides relay outputs for alarms and shutdowns in turbines, compressors, and pumps.
-
Process Control Integration: Interfaces with DCS and PLC systems for comprehensive process monitoring.
-
Safety Systems: Implements voting logic for critical safety applications requiring high reliability.
-
Industrial Automation: Used in various industries including oil and gas, power generation, and manufacturing for equipment protection.
Product Advantages
-
Flexible Configuration: Each relay can be independently programmed for specific alarm conditions.
-
Voting Logic Support: Enhances system reliability by requiring multiple conditions before triggering actions.
-
High Reliability: Designed for long operational life with over 10,000 relay operations.
-
Seamless Integration: Easily integrates into existing 3500 rack systems without additional hardware.
-
Global Certifications: Meets international standards for use in hazardous environments.
