Product Introduction

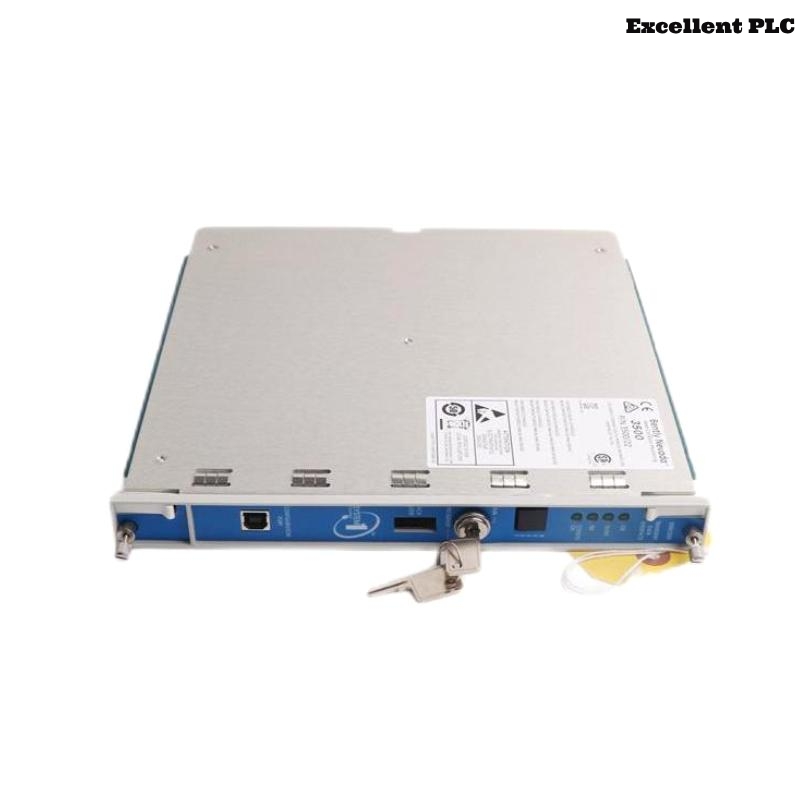

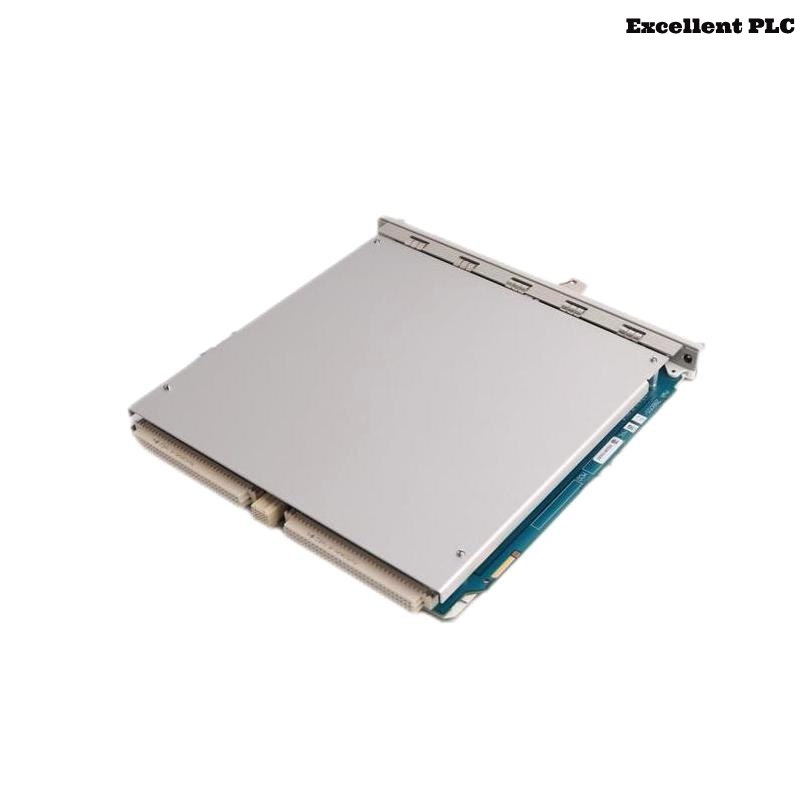

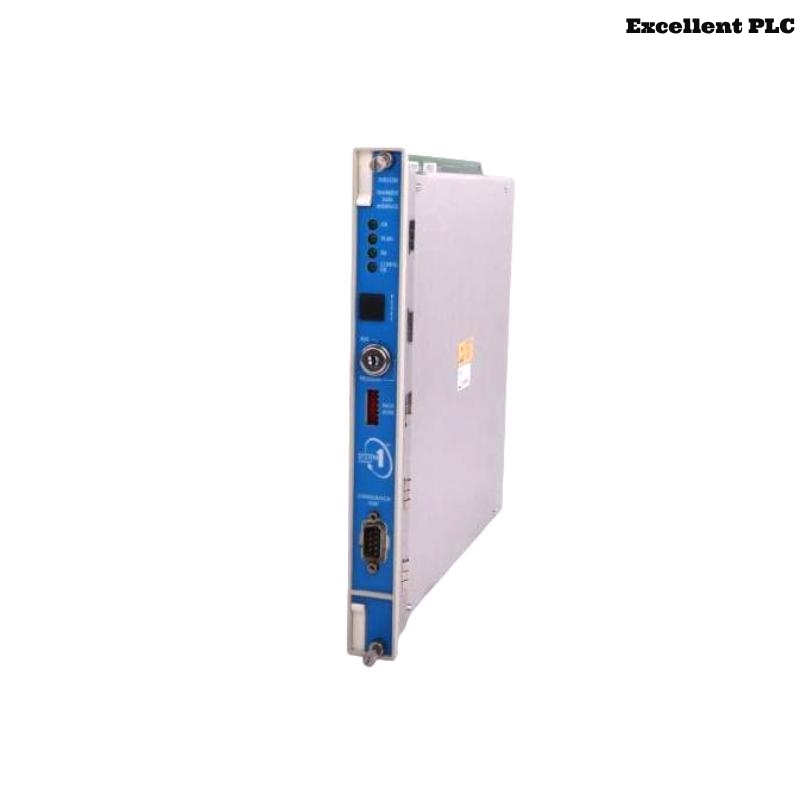

The Bently Nevada 3500/22M 288055-01 Transient Data Interface (TDI) Module is an integral component of the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. Designed to serve as the primary communication interface between the 3500 rack and external software platforms such as System 1®, the 22M TDI module collects and transmits static, dynamic, and transient data from all modules in the rack.

This module combines the functionality of the older 3500/20 Rack Interface Module and a Communication Processor Module into a single high-performance unit. With its modular design, the 3500/22M supports both transient data and static values and plays a critical role in real-time diagnostics and post-event analysis. Equipped with dual-redundant Ethernet ports and buffered output interfaces, the 22M TDI ensures robust data communication with minimal latency and high reliability across a wide range of industrial machinery monitoring applications.

---

Product Specifications

Parameter	Specification
Model Number	3500/22M
Part Number	288055-01
Function	Transient Data Interface Module
System Compatibility	Bently Nevada 3500 Series Rack
Communication Interfaces	Dual Ethernet ports (100Base-TX), RS232/485
Protocols Supported	Proprietary protocol for System 1® connectivity
Data Types Transmitted	Static data, dynamic vibration data, transient data
Buffered Output Terminals	Yes, for diagnostic access via BNC connectors
Data Rate	Up to 100 Mbps Ethernet
Redundancy Support	Yes, via redundant TDI configuration
Configuration Interface	3500/01 Rack Configuration Software
Power Consumption	4.0 W (typical)
Operating Temperature	–30°C to +65°C
Storage Temperature	–40°C to +85°C
Humidity Range	0% to 95% non-condensing
Dimensions	241.3 x 24.4 x 241.8 mm
Weight	0.91 kg
Mounting	Plugs directly into the 3500 rack
Firmware Upgradable	Yes, via System 1® and rack config software



---

Applications

• Machinery Condition Monitoring

  • Gas turbines, steam turbines, compressors, pumps, fans, and motors.

• Transient Data Acquisition

  • Captures and stores transient vibration events such as startups, shutdowns, trips, and other anomalies.

• Integration with System 1®

  • Seamless data streaming into Bently Nevada’s predictive analytics platform.

• Plantwide Monitoring Infrastructure

  • Acts as a centralized data gateway across multiple machinery systems.

• Diagnostics & Root Cause Analysis

  • Ideal for engineers seeking detailed, timestamped event data.

• Critical Asset Protection

  • Used across oil & gas, petrochemical, power generation, marine, and mining industries.

---

Advantages

• Combined Functionality

  • Reduces hardware requirements by combining rack interface and communication into a single module.

• High-Speed Data Capture

  • Enables advanced monitoring with real-time dynamic and transient data.

• Redundancy Ready

  • Supports dual TDI installation for fault-tolerant operation.

• Seamless Integration

  • Plug-and-play compatibility with Bently Nevada’s System 1® software.

• Improved Diagnostic Capability

  • Enables pre- and post-fault waveform analysis, helping avoid unplanned downtime.

• Firmware Upgrade Support

  • Ensures long-term support and scalability for future features.

• Rugged and Reliable

  • Engineered for harsh industrial environments with high shock and vibration tolerance.

• Modular Maintenance

  • Easy to replace or upgrade without rack downtime or re-cabling.

---

Latest News Headlines (Industry/Technology Related)

1. “Bently Nevada Expands TDI Module Capabilities with Enhanced Transient Data Capture”

2. “GE Digital’s System 1® Optimized for 3500/22M Real-Time Diagnostics”

3. “New Reliability Upgrades Drive Global Adoption of the 3500 Series”

4. “Modular Transient Interfaces Lead the Future of Predictive Maintenance”

5. “Oil & Gas Sector Sees Downtime Reduction with 3500/22M Integration”

---

Frequently Asked Questions (FAQ)

1. Q: What’s the main role of the 3500/22M in the 3500 rack?
   A: It acts as the primary interface for all communication between the rack and external monitoring systems like System 1®.

2. Q: Can the 3500/22M operate independently without System 1®?
   A: While it can collect data, its full potential is realized when used with System 1® for visualization and diagnostics.

3. Q: Is the 3500/22M hot-swappable?
   A: Yes, it can be replaced without removing power from the entire rack.

4. Q: How does the TDI support redundant configurations?
   A: Dual 22M modules can be installed for automatic failover, ensuring uninterrupted operation.

5. Q: Does it require a special software to configure?
   A: Yes, configuration is done via Bently Nevada’s 3500/01 Rack Configuration Software.

6. Q: Can this module handle high vibration environments?
   A: Absolutely. It is designed for industrial-grade environments including turbine enclosures.

7. Q: What type of transient data can it capture?
   A: Startups, shutdowns, machine trips, surge events, and speed changes.

8. Q: How is the data transferred to external systems?
   A: Via dual Ethernet ports using Bently Nevada’s proprietary protocol.

9. Q: Does it store data locally?
   A: No, it streams data in real time to external systems for storage and analysis.

10. Q: What’s the difference between 3500/22 and 3500/22M?
    A: The “M” version provides enhanced features, faster data throughput, and improved diagnostic integration.

---

Related Models (Same Series / Functional Family)

Model Number	Description	Function
3500/22	Standard Transient Data Interface Module	Entry-level version without modular upgrades
3500/01	Rack Configuration Software	Used to configure all rack modules
3500/15	Power Supply Module	Provides system power
3500/25	Keyphasor Module	Detects shaft position and rotational speed
3500/42M	Proximitor/Seismic Monitor	Vibration and displacement monitoring
3500/93	System Display Interface	Outputs monitoring data to remote displays

Popular Bently Nevada Models (Same Brand)

Model Number	Description	Key Application
330103-00-05-10-02-00	Proximity Probe	Vibration and displacement measurement
330104-00-05-10-02-00	Reverse Mount Probe	Space-limited installations
3500/40M	Proximitor Monitor	Shaft vibration monitoring
3500/50	Tachometer Module	Measures rotational speed and acceleration
3500/60	Temperature Monitor	Process and bearing temperature monitoring
3500/94M	Touchscreen Display Module	Local user interface with live data and alerts
