Product Introduction

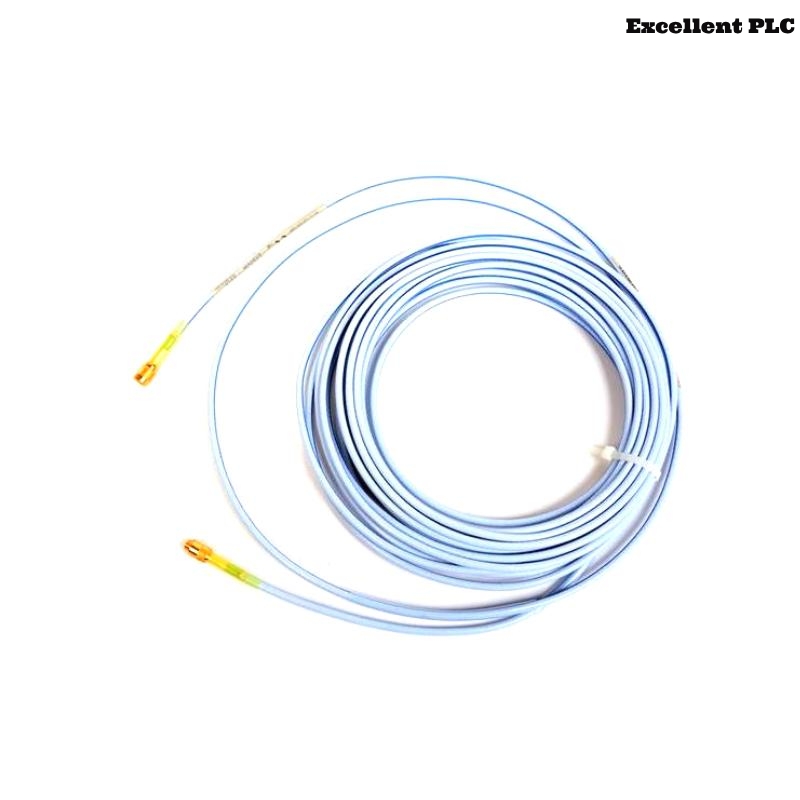

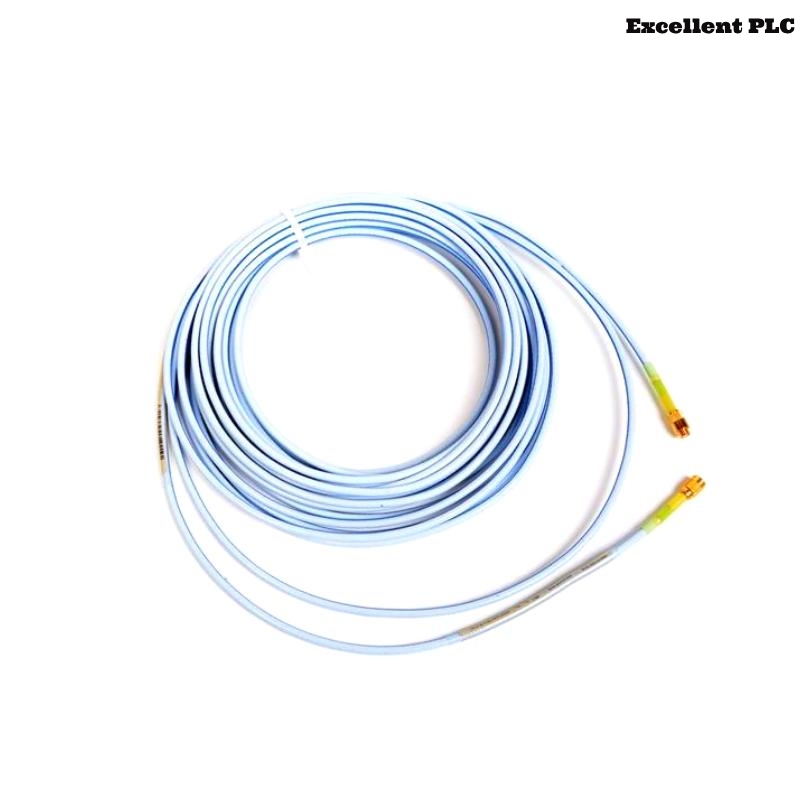

The Bently Nevada 330854-080-24-05 is a high-quality extension cable specifically designed for use with the 3300 XL 25 mm Proximity Transducer System. Bently Nevada, a brand recognized for excellence in machinery protection and condition monitoring solutions, ensures that this extension cable delivers optimal signal integrity and durability even in the most demanding industrial environments.
Constructed to withstand harsh conditions such as extreme temperatures, oil exposure, moisture, and vibration, the 330854-080-24-05 cable plays a critical role in maintaining the reliability and accuracy of the transducer system. With its 8.0 meters, this cable offers flexibility in installation without compromising performance.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 330854-080-24-05 |
| Series | 3300 XL 25 mm |
| Cable Type | Extension Cable |
| Cable Length | 8.0 meters |
| Connector Type | MIL-C-5015 circular connectors |
| Jacket Material | ETFE (Ethylene Tetrafluoroethylene) |
| Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Environmental Protection | Resistant to oil, moisture, chemical exposure, and abrasion |
| Electrical Resistance | <0.5 ohm |
| Capacitance | Approximately 47 pF/m |
| Impedance | 50 Ohms nominal |
| Weight | 0.36 kg |
| Cable Diameter | 7.62 mm (0.3 inches) |
| Certifications | CE Marked, RoHS Compliant |
Product Applications
The Bently Nevada 330854-080-24-05 extension cable is widely used across industries that require precision machinery monitoring and protection. Key applications include:
-
Steam turbines
-
Gas turbines
-
Compressors
-
Gearboxes
-
Generators
-
Motors
-
Pumps
-
Industrial process machinery where critical rotating components must be monitored
The extension cable enables installations where probe positioning requires longer distances, without signal degradation.
Product Advantages
-
Superior Durability: Built with rugged materials to endure harsh industrial environments, including high temperatures and chemical exposure.
-
Excellent Signal Integrity: Designed to maintain consistent, reliable electrical performance over long distances.
-
Flexible Installation: The 8.0 meters length provides flexibility for different mounting requirements and complex machinery setups.
-
Compatibility: Fully compatible with the Bently Nevada 3300 XL 25 mm proximity transducer system, ensuring seamless integration.
-
Low Maintenance: Resistant to oil, moisture, and abrasions, reducing maintenance needs and downtime.
-
Environmental Resilience: Operates reliably across extreme temperature ranges and challenging environmental conditions.
-
Certified Quality: Complies with international standards for safety and environmental protection, including CE and RoHS.
FAQ (Frequently Asked Questions)
1. What is the exact length of the Bently Nevada 330854-080-24-05 cable?
The cable length is 8.0 meters.
2. What type of connectors are used in this extension cable?
It uses MIL-C-5015 circular connectors.
3. What temperature range can the cable withstand?
It operates reliably between -51°C to +177°C (-60°F to +350°F).
4. Is the cable resistant to oil and chemicals?
Yes, the jacket material (ETFE) is highly resistant to oil, moisture, chemicals, and abrasions.
5. Can this extension cable be used with other proximity probes?
It is specifically designed for the 3300 XL 25 mm proximity transducer system and is best used within that compatibility range.
6. What is the nominal impedance of the cable?
The nominal impedance is 50 Ohms.
7. Is the cable RoHS compliant?
Yes, it is RoHS compliant, meaning it is free from hazardous substances.
8. How heavy is the cable?
The cable weighs 0.36 kg.
9. What is the outer diameter of the cable?
The cable has an outer diameter of 7.62 mm (0.3 inches).
10. Does the cable require any special maintenance?
Minimal maintenance is required due to its rugged, oil-resistant, and chemical-resistant construction.
Related Models from the Same Series
| Model Number | Cable Length | Connector Type | Description |
|---|---|---|---|
| 330854-020-12-05 | 6 meters (20 feet) | MIL-C-5015 | 3300 XL 25 mm Extension Cable |
| 330854-050-12-05 | 15 meters (50 feet) | MIL-C-5015 | 3300 XL 25 mm Extension Cable |
| 330854-120-24-05 | 36 meters (120 feet) | MIL-C-5015 | 3300 XL 25 mm Extension Cable |
| 330854-060-24-05 | 18 meters (60 feet) | MIL-C-5015 | 3300 XL 25 mm Extension Cable |
| 330854-100-24-05 | 30 meters (100 feet) | MIL-C-5015 | 3300 XL 25 mm Extension Cable |
| 330854-150-24-05 | 45 meters (150 feet) | MIL-C-5015 | 3300 XL 25 mm Extension Cable |
