Product Introduction

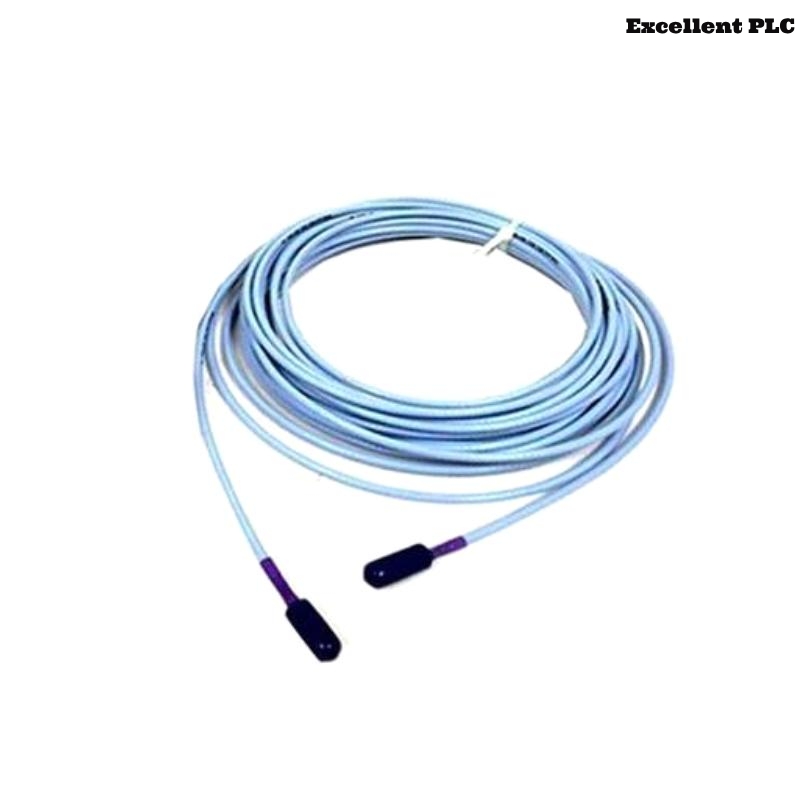

The Bently Nevada 330854-040-24-CN 3300 XL 25 mm Extension Cable is a high-quality cable designed to extend the range of the Bently Nevada 3300 XL Proximity Sensors. It is engineered to connect Proximitor Sensors to their respective drivers or monitoring systems, enabling precise displacement and vibration measurements over greater distances. The extension cable provides flexibility in installation by offering a longer reach without compromising the performance of the system.
The 3300 XL Extension Cable features high durability and reliable electrical performance, even in harsh industrial environments. Its robust design ensures that the cable can be used in a variety of monitoring applications, including turbines, motors, pumps, compressors, and other critical rotating machinery in industries such as power generation, oil & gas, mining, and manufacturing. This extension cable is compatible with Bently Nevada’s 3300 XL Proximity Sensor series and can be used for applications requiring accurate and stable signal transmission.
Designed to meet the stringent requirements of industrial condition monitoring systems, the 3300 XL Extension Cable ensures minimal signal loss and robust connectivity even when used over long distances, which is crucial for the reliability and precision of machine health monitoring systems.
Product Specifications
Below is a detailed table of the key specifications for the Bently Nevada 330854-040-24-CN 3300 XL 25 mm Extension Cable:
| Parameter | Details |
|---|---|
| Model Number | Bently Nevada 330854-040-24-CN |
| Series | 3300 XL |
| Cable Type | Extension Cable |
| Cable Length | 4 meters |
| Cable Diameter | 25 mm |
| Conductor Type | Shielded, multi-conductor |
| Operating Temperature | -40°C to +85°C |
| Insulation Type | PVC, heat-resistant |
| Voltage Rating | 30 V DC |
| Current Rating | 10 A |
| Connector Type | 12-pin male/female connector |
| Environmental Protection | IP67 (Dust and Water Resistant) |
| Weight | 0.14 kg |
| Compliance | CE, UL Certified |
| Shielding | Fully shielded to prevent electrical interference |
Product Applications
The Bently Nevada 330854-040-24-CN 3300 XL 25 mm Extension Cable is primarily used in industrial condition monitoring systems, particularly for connecting Bently Nevada 3300 XL Proximity Sensors to their corresponding drivers or monitoring systems. It is ideal for applications that require precise and continuous monitoring of machine health, including:
-
Turbine Monitoring: Provides extended reach for the Proximity Sensors, enabling accurate displacement monitoring in turbine applications.
-
Motor and Generator Monitoring: Allows for longer cable runs when monitoring the health of motors and generators, ensuring accurate data collection from rotating parts.
-
Pump and Compressor Applications: Ideal for installations where sensors need to be positioned further from the monitoring equipment.
-
Power Generation Plants: Used in plants where machinery is spread out over large distances, ensuring the sensor signals are reliably transmitted.
-
Oil & Gas Industry: Perfect for offshore and onshore applications where machinery monitoring is critical for safety and performance.
-
Mining and Manufacturing: Ensures that machines in harsh environments, like crushers or mills, are continuously monitored for early fault detection.
Product Advantages
The Bently Nevada 330854-040-24-CN 3300 XL 25 mm Extension Cable offers several key advantages, ensuring optimal performance in industrial settings:
-
Extended Range: With a length of 4 meters, the extension cable allows Proximity Sensors to be positioned further from the monitoring equipment, providing flexibility in large-scale installations.
-
High Durability: The cable is made from high-quality, heat-resistant materials, ensuring longevity even in harsh industrial environments with extreme temperatures and vibrations.
-
Shielded Construction: The fully shielded design of the cable prevents electrical interference and signal degradation, ensuring reliable and stable operation over long distances.
-
Easy Integration: The 3300 XL Extension Cable is compatible with other Bently Nevada 3300 XL series products, making it easy to integrate into existing monitoring systems.
-
Water and Dust Resistant: With an IP67 rating, the cable is resistant to water and dust, making it ideal for harsh environments where exposure to contaminants is common.
-
Cost-Effective: By allowing flexibility in the installation and reducing the need for additional equipment, this extension cable helps reduce overall system setup costs.
-
Reliability: Designed for industrial use, the cable guarantees long-lasting, high-performance signal transmission even under challenging conditions.
-
Versatility: Suitable for use in a wide range of industrial applications, from power generation to oil & gas, providing reliable connectivity for condition monitoring systems.
-
High Voltage and Current Rating: Capable of handling up to 30 V DC and 10 A, the cable can support a wide variety of industrial systems and setups.
-
Compliance with Standards: The extension cable meets CE and UL certification standards, ensuring it adheres to industry safety and quality requirements.
FAQ (Frequently Asked Questions)
-
What is the maximum length of the Bently Nevada 330854-040-24-CN Extension Cable?
-
The cable length is 4 meters, offering extended reach for Proximity Sensors in large industrial systems.
-
-
Is the cable compatible with all Bently Nevada 3300 XL series sensors?
-
Yes, the extension cable is specifically designed to work with Bently Nevada 3300 XL Proximity Sensors, ensuring seamless integration.
-
-
Can the extension cable be used in outdoor environments?
-
Yes, the cable is IP67 rated, which means it is dustproof and water-resistant, making it suitable for outdoor use in harsh conditions.
-
-
What is the maximum voltage the cable can handle?
-
The cable can handle a voltage of up to 30 V DC, making it compatible with a wide range of industrial monitoring systems.
-
-
What type of shielding does the cable have?
-
The cable is fully shielded to prevent electrical interference, ensuring stable signal transmission over long distances.
-
-
What is the weight of the cable per 24 meters?
-
The cable weighs 0.14 kg.
-
-
Can the cable be used in extreme temperatures?
-
Yes, the cable can operate in temperatures ranging from -40°C to +85°C, making it suitable for both low and high-temperature environments.
-
-
Is the Bently Nevada 330854-040-24-CN Extension Cable easy to install?
-
Yes, the cable features standard 12-pin male and female connectors, making it easy to install and connect with the Proximity Sensors.
-
-
What is the diameter of the cable?
-
The cable has a diameter of 25 mm, making it robust enough to withstand industrial use while still being flexible for installation.
-
-
Is this extension cable UL and CE certified?
-
Yes, the Bently Nevada 330854-040-24-CN extension cable is both CE and UL certified, ensuring it meets global industry standards.
-
Recommended Related Models
Below are six related models from the 3300 XL series that complement or work alongside the Bently Nevada 330854-040-24-CN 3300 XL 25 mm Extension Cable:
| Model | Description | Key Feature |
|---|---|---|
| Bently Nevada 330854-040-10-CN | 3300 XL 10 mm Extension Cable | Shorter version for smaller distances |
| Bently Nevada 330854-040-50-CN | 3300 XL 50 mm Extension Cable | For applications requiring longer distances |
| Bently Nevada 330850-90-CN | 3300 XL 25 mm Proximitor Sensor | Compatible with extension cables |
| Bently Nevada 330854-040-75-CN | 3300 XL 75 mm Extension Cable | Longer extension for larger setups |
| Bently Nevada 330852-040-24-CN | 3300 XL 25 mm Dual Cable Extension | Dual cable configuration for redundancy |
| Bently Nevada 330850-90-CE | 3300 XL 25 mm Proximitor Sensor (CE Certified) | European certified version of Proximitor |
