Product Introduction

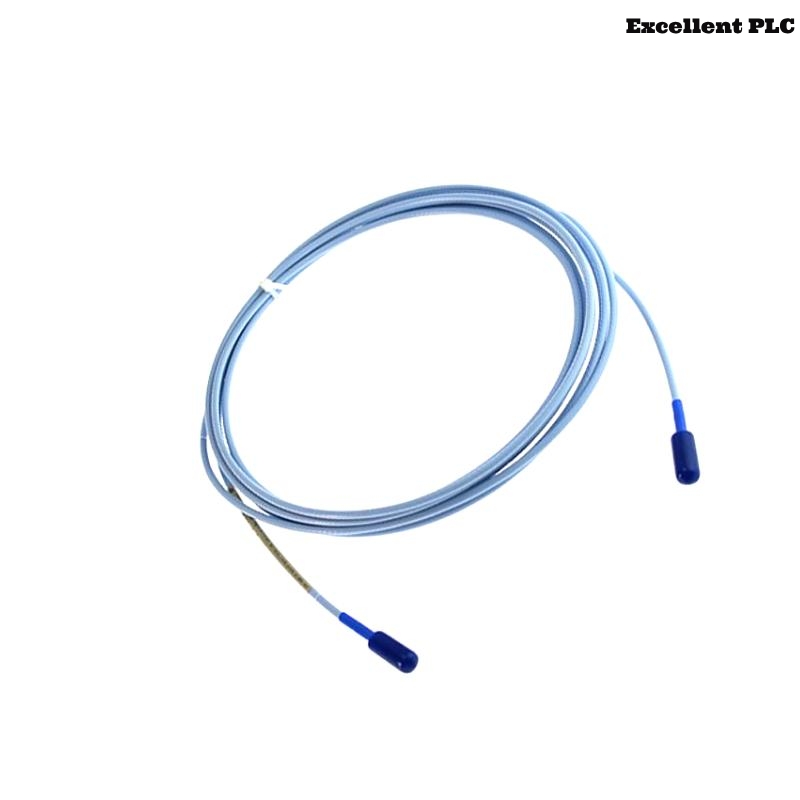

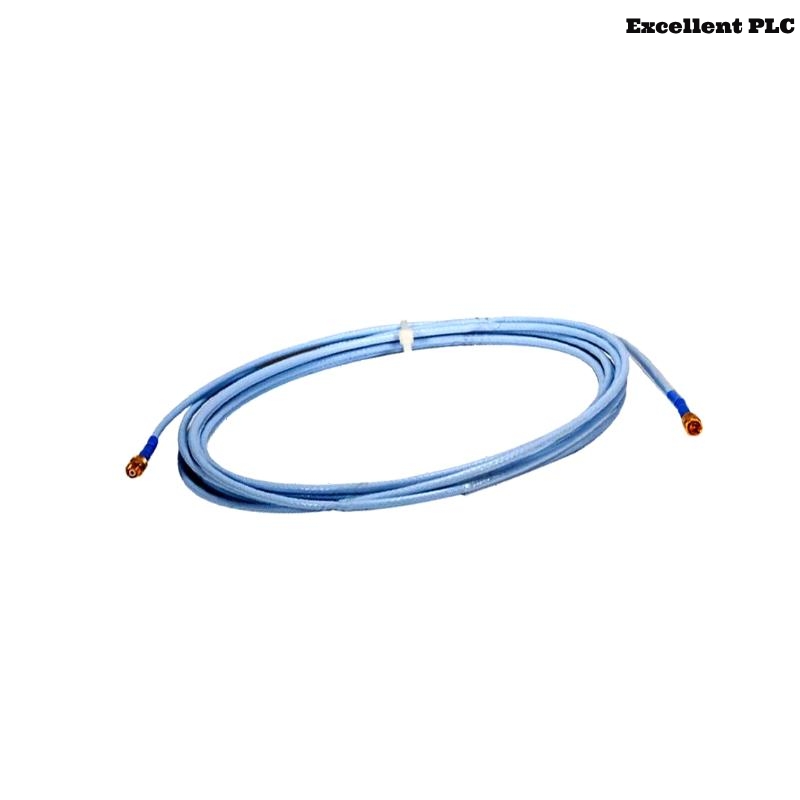

The Bently Nevada 330730-080-01-CN is a high-performance extension cable designed for the 3300 XL 11 mm Proximity Transducer System. This cable serves as a critical link between the proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration and position signals in industrial machinery monitoring applications.
Manufactured in the USA, the 330730-080-01-CN features an 8.0-meter (26.2 feet) length and armored construction, providing enhanced durability in harsh environments. Its design adheres to stringent industrial standards, making it suitable for use in various sectors, including power generation, oil and gas, and manufacturing.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 3300 XL 11 mm Extension Cable |
| Part Number | 330730-080-01-CN |
| Manufacturer | Bently Nevada |
| Country of Origin | United States |
| Cable Length | 8.0 meters (26.2 feet) |
| Cable Type | Armored |
| Armor Material | Flexible AISI 302 Stainless Steel with FEP outer jacket |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Frequency Response | 0 to 8 kHz, +0, -3 dB typical |
| Connector Type | Gold-plated brass ClickLoc connectors |
| Recommended Gap Setting | 2.5 mm (100 mils) |
| Linear Range | 0.5 mm to 4.5 mm (20 mils to 180 mils) |
| Deviation from Straight Line (DSL) | ±0.10 mm (±4 mils) standard; ±0.15 mm (±6 mils) extended |
| Minimum Bend Radius | 25.4 mm |
| Weight | 0.36 kg |
| Certifications | Country-specific approvals (CN) |
Applications
-
Axial (Thrust) Position Measurements: Monitoring axial displacement in rotating machinery.
-
Differential Expansion Measurements: Assessing thermal expansion in steam turbines.
-
Rod Position or Rod Drop Measurements: Evaluating piston rod position in reciprocating compressors.
-
Tachometer and Zero Speed Measurements: Detecting rotational speed and zero-speed conditions.
-
Phase Reference (Keyphasor) Signals: Providing reference signals for vibration analysis.
Advantages
-
Enhanced Durability: Armored construction with stainless steel and FEP jacket ensures resistance to mechanical damage and environmental factors.
-
High-Temperature Operation: Capable of functioning in extreme temperatures ranging from -51°C to +177°C.
-
Reliable Signal Transmission: Maintains signal integrity over long distances with low capacitance.
-
Secure Connections: ClickLoc connectors provide secure, vibration-resistant connections.
-
Compatibility: Designed to seamlessly integrate with the 3300 XL 11 mm Proximity Transducer System.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 330730-080-01-CN extension cable?
It connects the proximity probe to the Proximitor sensor, transmitting vibration and position signals accurately. -
Is this cable compatible with other Bently Nevada systems?
It is specifically designed for the 3300 XL 11 mm Proximity Transducer System. -
What does the ‘080’ in the part number signify?
It indicates the cable length of 8.0 meters (26.2 feet). -
What type of environments is this cable suitable for?
Its armored construction makes it suitable for harsh industrial environments with high temperatures and potential mechanical hazards. -
Can this cable be used in hazardous areas?
Yes, it has country-specific approvals, making it suitable for use in hazardous locations. -
What is the significance of the ClickLoc connectors?
They ensure a secure, vibration-resistant connection between components. -
What is the typical capacitance of this cable?
69.9 pF/m (21.3 pF/ft). -
What is the recommended gap setting for this system?
2.5 mm (100 mils). -
What is the weight of the cable?
0.36 kg. -
Where is this cable manufactured?
It is manufactured in the United States.
Related Models (Same Series or Functionally Related)
| Model | Description | Cable Length |
|---|---|---|
| 330730-080-01-00 | Standard 11 mm Extension Cable | 8.0 meters |
| 330730-080-02-00 | Armored Cable with different connector type | 8.0 meters |
| 330730-080-03-00 | Standard Cable with alternative approvals | 8.0 meters |
| 330730-040-01-00 | Shorter Armored Extension Cable | 4.0 meters |
| 330730-120-01-00 | Longer Armored Extension Cable | 12.0 meters |
| 330730-080-00-00 | Standard Cable without armor | 8.0 meters |
Popular Bently Nevada Models
| Model | Description | Application |
|---|---|---|
| 3300 XL 8 mm Probe | Proximity probe for standard applications | General machinery monitoring |
| 3300 XL Proximitor | Signal conditioning module for proximity probes | Vibration and position sensing |
| 3500/42M Monitor | Vibration monitor module | Machinery protection systems |
| 3500/22M Transient Data Interface | Data interface module | Data acquisition and analysis |
| 1900/65A Monitor | Compact vibration monitor | General-purpose equipment |
| 2300 Monitor | Stand-alone vibration monitor | Continuous machinery monitoring |
