Product Overview

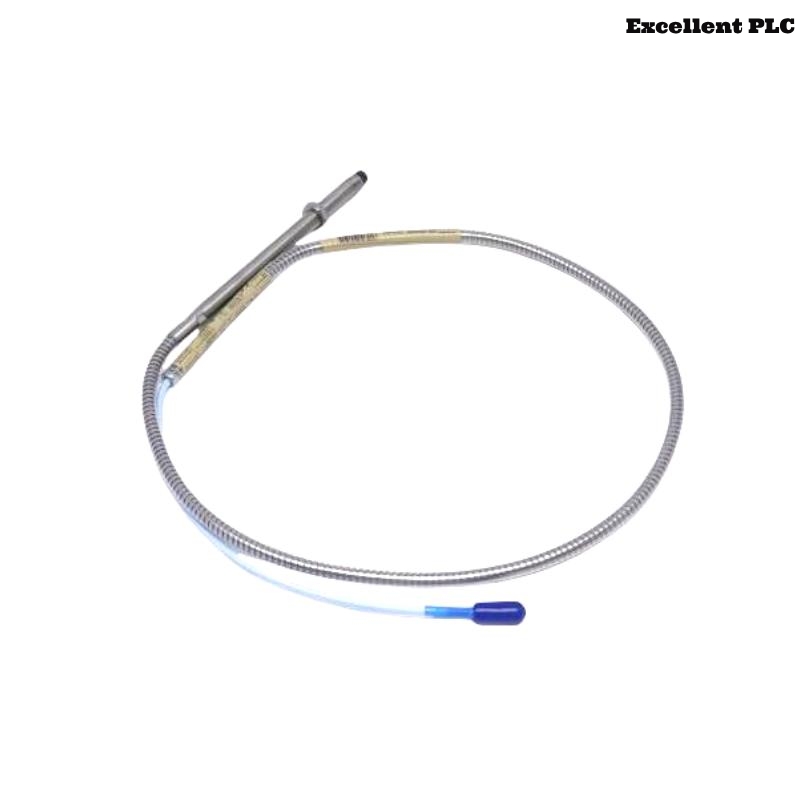

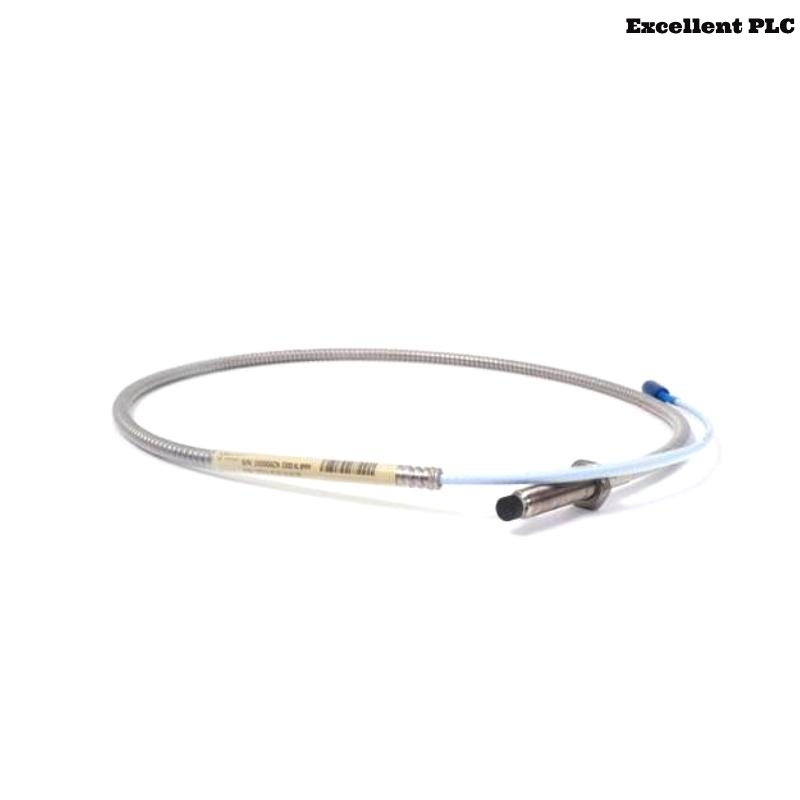

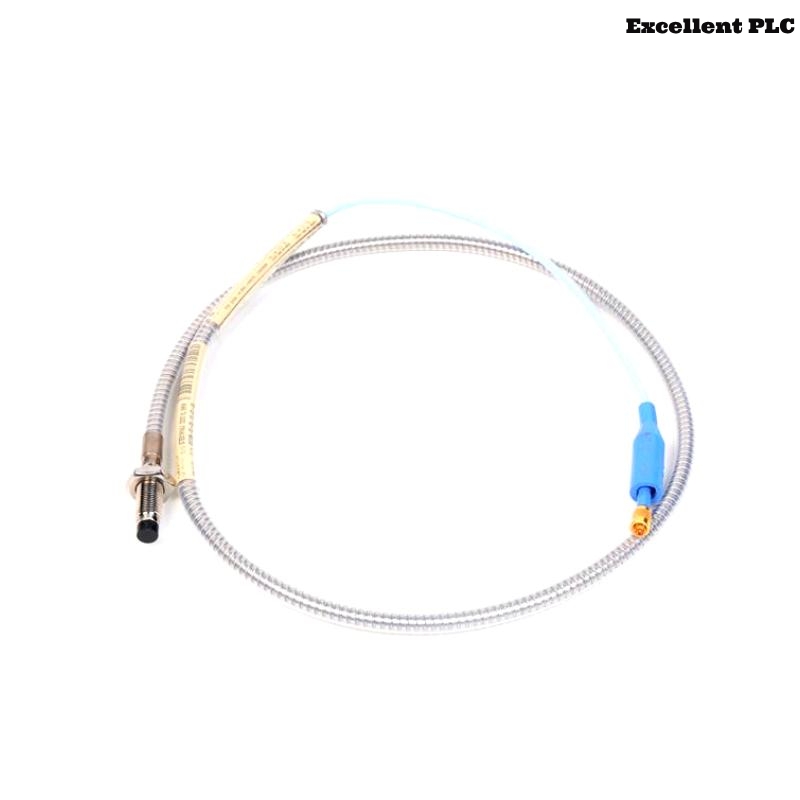

The Bently Nevada 330104-00-03-10-02-00 is a high-performance 3300 XL 8 mm Proximity Probe designed to deliver accurate, stable, and consistent measurements of shaft position and vibration in critical rotating machinery applications. Engineered by Bently Nevada, a trusted name in condition monitoring and asset protection, this probe is part of the renowned 3300 XL series, known for its durability, ease of installation, and industry-leading performance.
This model specifically offers an extended range and is constructed to meet stringent industrial demands. It is commonly paired with matching extension cables and proximity sensor drivers to form a complete proximity transducer system.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 330104-00-03-10-02-00 |
| Series | 3300 XL 8 mm |
| Sensing Range | -2 mm to +2 mm (total range 4 mm) |
| Linear Range | 2 mm (±1 mm from target) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| System Accuracy | ±0.127 mm (±5 mils) or better |
| Probe Tip Diameter | 8 mm |
| Probe Body Diameter | 9.52 mm (0.375 inch) |
| Probe Thread Size | 3/8-24 UNF |
| Case Material | AISI 303 Stainless Steel |
| Total Length | 1 meters |
| Weight | 0.323 kg |
| Operating Temperature Range | -35°C to +120°C (-31°F to +248°F) |
| Environmental Protection | Sealed to IP67 standard |
| Vibration Limit | 20 g peak, 10–2000 Hz |
| Shock Limit | 5000 g, 1 ms half-sine |
| Mounting Option | Threaded with locknut |
| Electrical Connector Type | ClickLoc or standard connector (2-pin axial) |
| Compliance Standards | CE, RoHS, ATEX certified (when applicable with full system) |
Applications
The 330104-00-03-10-02-00 proximity probe is widely utilized across various industries that rely on rotating machinery, such as:
-
Power Generation: Turbines, generators, and motor shaft position monitoring.
-
Oil and Gas: Compressors and pumps in critical applications requiring high reliability.
-
Petrochemical: Continuous condition monitoring in harsh, hazardous environments.
-
Pulp & Paper, Steel, and Mining Industries: To ensure uptime and prevent unexpected failures.
-
OEM Equipment: Integrated by original equipment manufacturers in machinery for enhanced diagnostic capabilities.
Its ability to function in extreme environments makes it ideal for both preventive maintenance and real-time condition monitoring.
Key Advantages
-
Industry-Leading Reliability: Designed for long-term use even in high-temperature and high-vibration environments.
-
Easy Integration: Fully compatible with Bently Nevada 3300 and 3500 monitoring systems.
-
High Accuracy & Sensitivity: Ensures accurate displacement and vibration readings critical for machinery diagnostics.
-
Robust Construction: Stainless steel body and IP67 protection allow installation in harsh conditions.
-
ClickLoc Connector Option: Secure, vibration-resistant connection prevents loosening over time.
-
Wide Application Range: Suitable for monitoring radial and axial shaft positions.
-
Field-Proven Design: Based on years of operational experience across industries.
-
System Compatibility: Matches with various extension cables and drivers for a complete monitoring system.
Frequently Asked Questions (FAQ)
-
What does the part number 330104-00-03-10-02-00 specify?
It denotes a specific configuration of the 3300 XL 8 mm proximity probe, including length, connector type, and thread size. -
What driver or extension cable is compatible with this probe?
It is designed to work with the 3300 XL series extension cables and Proximitor drivers (e.g., 3300 XL Proximitor Sensor). -
Can this probe be used in hazardous locations?
Yes, when used as part of a certified system, it meets ATEX and other hazardous area requirements. -
What’s the difference between 5 mm and 8 mm probes?
The 8 mm probe offers a larger sensing range and is more robust, while 5 mm probes are used where space is limited. -
Is the probe field-replaceable?
Yes, the probe can be replaced independently without needing to recalibrate the entire system. -
How should I mount the probe for optimal accuracy?
Ensure it’s installed perpendicular to the shaft surface, with the correct standoff distance, and using a locknut. -
What is the default calibration target?
The probe is calibrated using AISI 4140 steel (UNS G41400), which should match your shaft material for best results. -
Does it support dynamic signal output?
Yes, it supports both static and dynamic output signals via its matching Proximitor sensor. -
How do I identify probe failure?
Monitor for irregular readings, zero drift, or loss of signal. Diagnostics are typically handled via the 3500 monitoring system. -
Is the ClickLoc connector mandatory?
No, it’s optional. Standard connectors are available for applications where ClickLoc isn’t required.
Related Models from the Same Series
| Model | Description | Cable Length | Thread Type | Application |
|---|---|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL 8 mm Probe with 5 m cable | 5 meters | 3/8-24 UNF | Standard machinery monitoring |
| 330104-00-06-10-02-00 | 8 mm Probe, 6 m cable | 6 meters | 3/8-24 UNF | Long-distance mounting |
| 330104-00-08-10-02-00 | 8 mm Probe, 8 m cable | 8 meters | 3/8-24 UNF | Extended range proximity setup |
| 330104-00-10-10-02-00 | 8 mm Probe, 10 m cable | 10 meters | 3/8-24 UNF | For remote probe applications |
| 330105-02-12-10-02-00 | Reverse mount, 8 mm Probe | 12 meters | M10x1 | Tight space, reverse install |
| 330106-05-04-10-02-00 | 3300 XL 5 mm Probe, 4 m cable | 4 meters | 1/4-28 UNF | Compact sensor applications |
Popular Models from Bently Nevada
| Model | Description | Application Type | Cable Length |
|---|---|---|---|
| 330130-040-00-00 | 3300 XL 8 mm Extension Cable | Cable for proximity probe | 4 meters |
| 330180-91-00 | 3300 XL NSv Proximitor Sensor | Narrow gap, small shaft | — |
| 330500-02-00 | Proximitor Sensor, 8 mm system | Probe signal conversion | — |
| 3500/42M | Vibration Monitor module for 3500 series | Multi-channel monitoring | — |
| 3500/22M | Transient Data Interface Module | High-speed data capture | — |
| 190501-00-00 | Seismic Vibration Sensor | Case-mounted vibration sensing | — |
