Product Introduction:

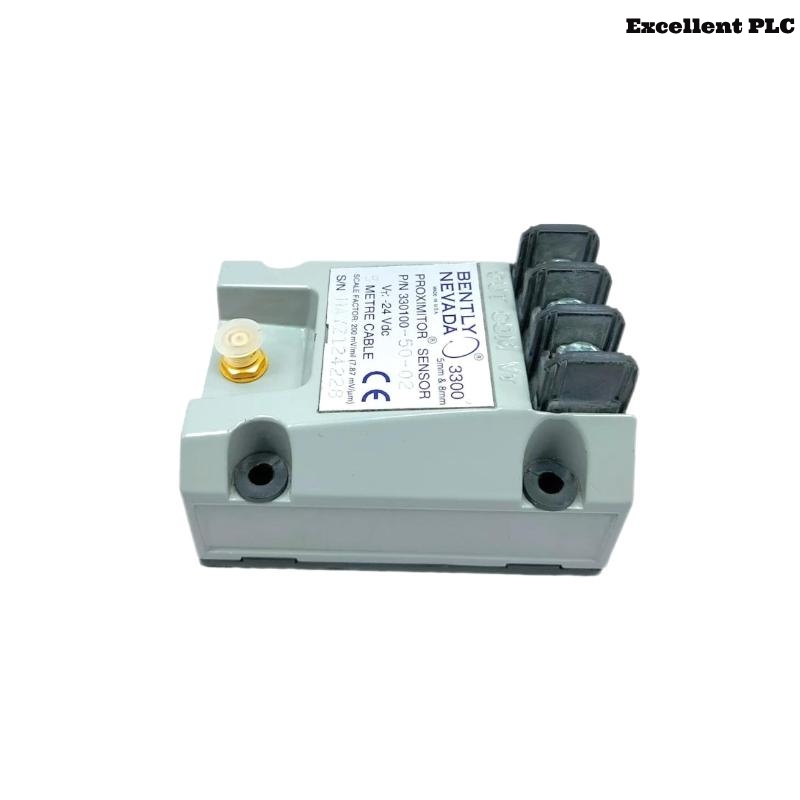

The Bently Nevada 330100-50-02 3300 Proximitor Sensor is an advanced industrial displacement sensor designed for precise measurement of the relative position of rotating components. This sensor is widely used for monitoring critical machinery such as turbines, compressors, and motors, where high accuracy and real-time condition monitoring are crucial. By detecting shifts and displacements in machinery components, it helps prevent costly failures and downtime.

Part of the Bently Nevada 3300 series, the 330100-50-02 is equipped with the latest eddy current technology, providing fast and reliable performance. Its robust construction allows it to withstand harsh industrial environments, making it ideal for use in a variety of sectors including power generation, petrochemical, and manufacturing.

This sensor is built to operate seamlessly with Bently Nevada’s machinery protection systems, ensuring that it integrates easily into existing setups while offering top-tier monitoring capabilities.

---

Product Specifications:

Specification	Details
Model	Bently Nevada 330100-50-02
Type	Proximitor Sensor
Measuring Range	0 to 75 mils (0 to 1.91 mm)
Output	4-20 mA, DC
Operating Temperature	-40°C to 100°C (-40°F to 212°F)
Housing Material	Stainless Steel
Weight	5.0 metres
Total Length	145 mm x 40 mm x 52 mm
Voltage Range	18V to 30V DC
Sensor Type	Eddy Current
Accuracy	±0.02 mm
Response Time	1 ms (minimum)
Output Impedance	500 Ohms



---

Product Applications:

The Bently Nevada 330100-50-02 3300 Proximitor Sensor is designed for use in critical machinery monitoring. Its high accuracy and real-time monitoring capabilities make it suitable for a wide range of applications:

• Turbine Monitoring: Ideal for monitoring the clearance between the rotating shaft and stationary parts in turbines, preventing shaft contact and ensuring smooth operation.

• Compressor Positioning: Used in compressors to measure rotor-stator gaps, helping avoid rotor rub and reducing the risk of catastrophic failure.

• Motor Shaft Positioning: Ensures the proper alignment of motor shafts, preventing misalignment that can lead to premature bearing wear or even motor failure.

• Vibration Monitoring: Used for continuous monitoring of the position of vibrating machinery, especially in high-speed rotating equipment like fans and mixers.

• Industrial Equipment: Suitable for general-purpose use in industrial machinery where precise monitoring of component displacement is needed to prevent damage.

---

Product Advantages:

1. High Precision: The 330100-50-02 Proximitor Sensor provides extremely high accuracy (±0.02 mm), ensuring reliable detection of even minor displacements.

2. Rugged Construction: Designed to perform in tough industrial environments, it is built to endure extreme temperature fluctuations, high vibration, and exposure to corrosive elements.

3. Long-Term Durability: The robust stainless-steel housing ensures a long lifespan, reducing the need for frequent replacements and minimizing maintenance costs.

4. Easy Integration: The 330100-50-02 is fully compatible with Bently Nevada’s machinery protection systems, enabling seamless integration with existing monitoring setups.

5. Real-Time Monitoring: Continuous, real-time data from the sensor allows operators to make informed decisions, improving the overall operational efficiency of the equipment.

6. Early Fault Detection: By monitoring the relative position of machinery components, the sensor helps detect misalignments, excessive wear, or vibration issues before they lead to costly breakdowns.

7. Cost-Effective: By providing early warnings of potential failures, the sensor helps reduce unplanned downtime, maintenance costs, and extends the life of critical machinery.

8. Versatile Application: With its broad measuring range, the 3300 Proximitor Sensor is suitable for a wide range of industrial applications, making it a versatile choice for different industries.

---

FAQ:

1. What is the measuring range of the Bently Nevada 330100-50-02 3300 Proximitor Sensor?

   • The measuring range is from 0 to 75 mils (0 to 1.91 mm).

2. What output does the Bently Nevada 330100-50-02 sensor provide?

   • The sensor provides a 4-20 mA DC output signal for easy integration with control and monitoring systems.

3. What is the accuracy of the 330100-50-02 Proximitor Sensor?

   • The sensor offers an accuracy of ±0.02 mm.

4. Can the 3300 Proximitor Sensor be used in high-temperature environments?

   • Yes, the sensor operates within a temperature range of -40°C to 100°C (-40°F to 212°F).

5. What industries use the Bently Nevada 3300 Proximitor Sensor?

   • The sensor is commonly used in industries such as power generation, oil and gas, petrochemical, and manufacturing.

6. What material is the sensor housing made of?

   • The housing is made of stainless steel, ensuring durability in harsh environments.

7. How is the Bently Nevada 330100-50-02 sensor mounted?

   • The sensor has an integral mounting style, which is typically bolted onto the machinery.

8. What is the output impedance of the sensor?

   • The output impedance is 500 Ohms.

9. What voltage range is required for the sensor to operate?

   • The sensor operates with a voltage range of 18V to 30V DC.

10. Is the 330100-50-02 Proximitor Sensor easy to integrate with existing systems?

    • Yes, it is designed for easy integration with Bently Nevada’s machinery protection systems and other industrial monitoring setups.

---
