Product Introduction

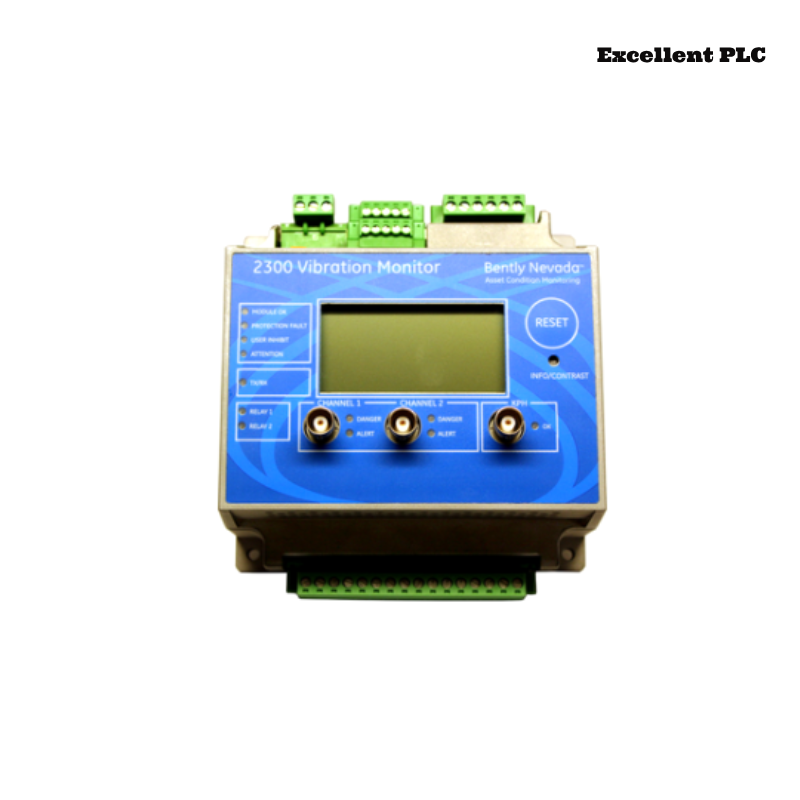

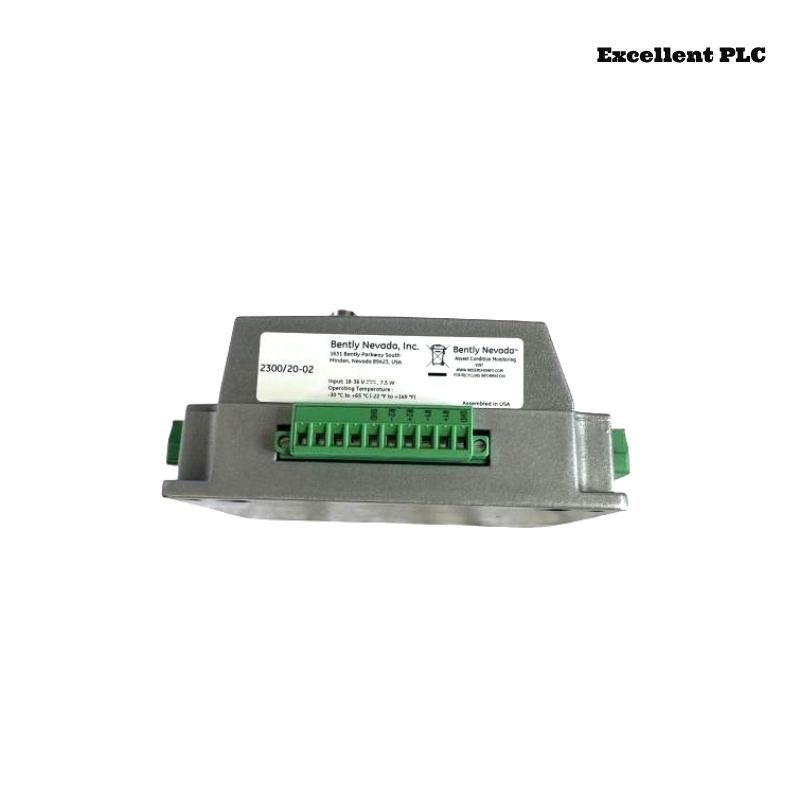

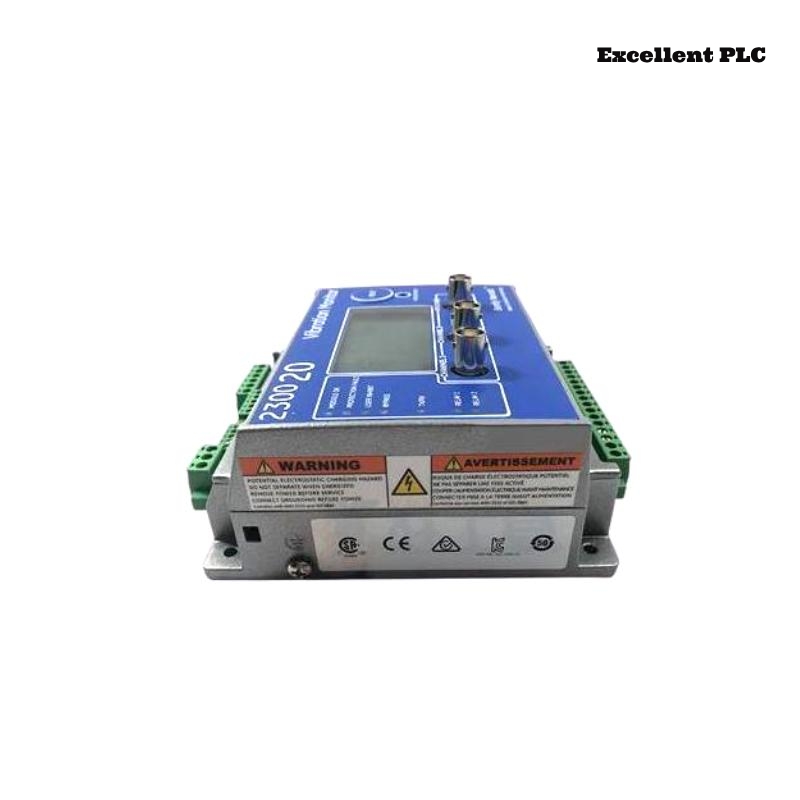

The Bently Nevada 2300/20-CN Vibration Monitor is a state-of-the-art device engineered for continuous monitoring and protection of rotating machinery. It offers early detection of mechanical issues, thereby preventing costly downtime and extending equipment lifespan. Designed for seamless integration into existing systems, this monitor is ideal for industries such as oil and gas, power generation, water treatment, pulp and paper, manufacturing, mining, and cement.
Key Features:
-
Dual Vibration Channels: Accommodates seismic or proximity measurement inputs from various accelerometers, Velomitor, and Proximitor types.
-
Speed Input Channel: Facilitates time-synchronous measurements, enhancing diagnostic capabilities.
-
Configurable Outputs: Includes two 4-20 mA outputs with an internal current loop power supply, allowing for flexible interfacing with Distributed Control Systems (DCS).
-
Communication Interfaces: Supports Modbus over Ethernet, enabling efficient data transmission and system integration.
-
Alarm Functionality: Provides high vibration level alarming with relay contact outputs for immediate response to abnormal conditions.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Input Channels | Two vibration channels (seismic/proximity), one speed channel |
| Supported Sensors | Accelerometers, Velomitor, Proximitor types |
| Outputs | Two 4-20 mA outputs, relay contacts |
| Communication Protocols | Modbus over Ethernet |
| Buffered Outputs | Three buffered transducer outputs via BNC connectors |
| Operating Voltage | 18–36 VDC, 6.5 W power consumption |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Dimensions (H x W x D) | 127 x 127 x 76.2 mm |
| Weight | 1.03 kg |
Applications:
-
Rotating Equipment: Continuous monitoring of pumps, motors, compressors, and turbines to detect imbalance, misalignment, and bearing faults.
-
Industrial Processes: Ensuring operational efficiency and safety in industries like oil and gas, power generation, and manufacturing.
-
Predictive Maintenance: Facilitating condition-based maintenance strategies by providing real-time data on machinery health.
Advantages:
-
Early Fault Detection: Identifies potential issues before they escalate, reducing unplanned downtime and maintenance costs.
-
Versatile Sensor Compatibility: Supports a range of sensor types, offering flexibility in monitoring various machinery configurations.
-
Robust Communication: Modbus over Ethernet ensures reliable data transmission and easy integration with existing control systems.
-
User-Friendly Interface: Configurable outputs and intuitive alarm settings simplify operation and enhance responsiveness.
Latest News Headlines:
-
“Bently Nevada Introduces Enhanced 2300/20-CN Vibration Monitor for Industrial Applications”
-
“Advancements in Vibration Monitoring: Spotlight on Bently Nevada’s 2300 Series”
-
“How the 2300/20-CN is Revolutionizing Predictive Maintenance Strategies”
-
“Bently Nevada’s 2300/20-CN: A Game-Changer in Machinery Health Monitoring”
-
“Integrating Bently Nevada’s 2300/20-CN into Modern Industrial Systems”
-
“Case Study: Reducing Downtime with the 2300/20-CN Vibration Monitor”
-
“Expert Insights: The Role of Vibration Monitoring in Industry 4.0”
-
“Bently Nevada’s Commitment to Innovation: The 2300/20-CN Vibration Monitor”
Frequently Asked Questions (FAQ):
-
What types of machinery can the 2300/20-CN monitor?
It is designed for rotating equipment such as pumps, motors, compressors, and turbines.
-
What sensor types are compatible with this monitor?
It supports accelerometers, Velomitor, and Proximitor sensors.
-
How does the monitor communicate with other systems?
It uses Modbus over Ethernet for seamless integration.
-
What are the output options available?
It provides two 4-20 mA outputs and relay contact outputs.
-
Is the monitor suitable for harsh environments?
Yes, it operates within -30°C to +65°C and up to 95% non-condensing humidity.
-
Can it be integrated into existing Distributed Control Systems (DCS)?
Yes, its configurable outputs allow easy interfacing with DCS.
-
What kind of power supply does it require?
It operates on 18–36 VDC with a power consumption of 6.5 W.
-
Does it provide real-time data?
Yes, it offers continuous monitoring and real-time data on machinery health.
-
What alarm functionalities are included?
It features high vibration level alarming with relay contact outputs.
-
How is the monitor mounted?
It is designed for panel mounting in industrial settings.
