Product Introduction

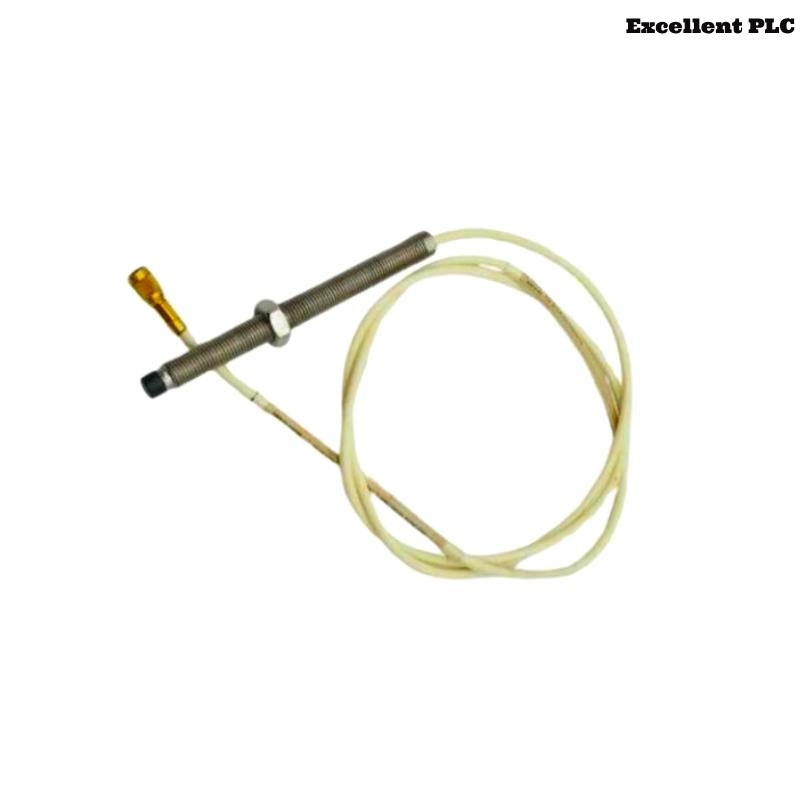

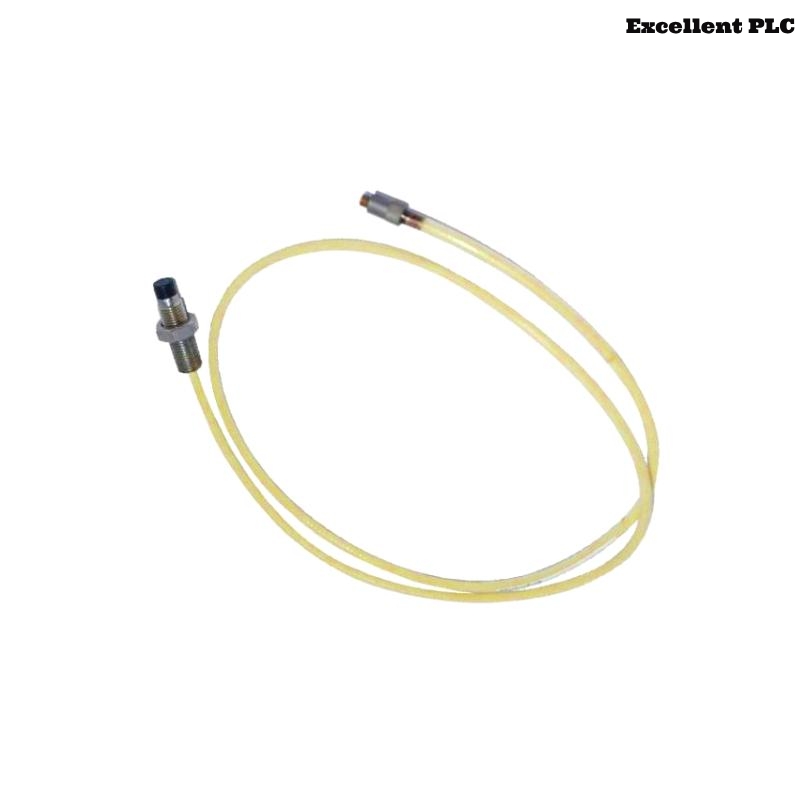

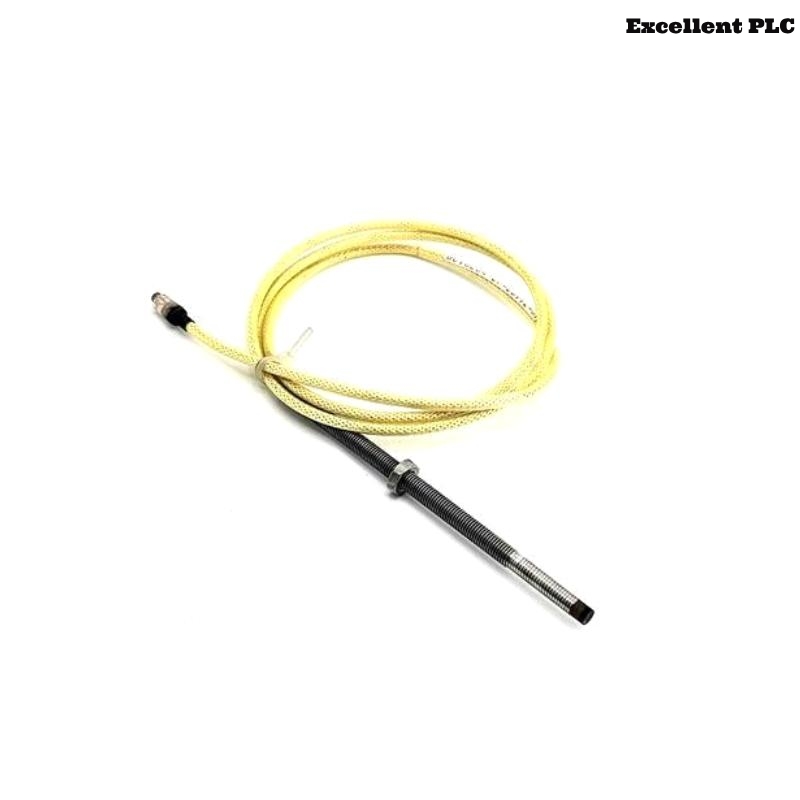

The Bently Nevada 21504-000-008-05-02 is an 8 mm Standard Mount Proximity Probe, part of the 7200 Proximity Transducer System. This non-contacting sensor is designed to measure both static and dynamic distances between the probe tip and the observed target. It is commonly used for shaft position and vibration measurements on rotating and reciprocating machinery.
Product Specifications
| Parameter | Specification |
| Model Number | 21504-000-008-05-02 |
| Probe Type | 8 mm Standard Mount Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Cable Length | 0.5 meter (20 inches) |
| Connector Type | Miniature male coaxial connector |
| Overall Case Length | 80 mm |
| Operating Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Weight | 0.23 kg (0.51 lbs) |
Product Applications
The 21504-000-008-05-02 probe is utilized in various industrial applications, including:
-
Oil and Gas Industry: Monitoring shaft vibration and position in turbines and compressors.
-
Petrochemical Plants: Ensuring operational integrity by detecting shaft displacement.
-
Power Generation: Monitoring for misalignment and mechanical wear in generators.
-
Manufacturing: Detecting rotor position and vibration anomalies in motors.
-
Pulp and Paper Industry: Ensuring proper alignment and detecting bearing issues in industrial fans.
-
Marine Engineering: Monitoring shaft vibration to prevent mechanical failures in ship propulsion systems.
Product Advantages
-
Non-Contact Measurement: Provides accurate measurements without physical contact, reducing wear and tear.
-
High Temperature Tolerance: Operates effectively in a wide temperature range, suitable for harsh environments.
-
Compact Design: The 8 mm probe size allows for installation in confined spaces.
-
Reliable Performance: Ensures accurate measurements of shaft vibration and position.
-
Ease of Installation: Standard mount design simplifies the installation process.
-
Compatibility: Works seamlessly with Bently Nevada’s 7200 Proximity Transducer Systems.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 21504-000-008-05-02 probe?
It measures static and dynamic distances between the probe tip and the observed target, commonly used for shaft position and vibration measurements. -
What is the thread size of this probe?
The probe has a 3/8-24 UNF thread size. -
What type of connector does this probe use?
It uses a miniature male coaxial connector. -
What is the cable length of the probe?
The probe comes with a 0.5 meter (20 inches) cable. -
What is the operating temperature range for this probe?
It operates effectively within a temperature range of -51°C to +177°C (-60°F to +351°F). -
What are the dimensions and weight of the probe?
The probe is 80 mm in length and 8 mm in diameter, weighing around 0.23 kg (0.51 lbs). -
Is this probe suitable for use in hazardous environments?
Yes, it is designed to operate in harsh industrial environments, including those with high temperatures. -
Can this probe be used in marine applications?
Yes, it is suitable for monitoring shaft vibration in marine propulsion systems. -
Is the probe compatible with other Bently Nevada systems?
Yes, it is compatible with Bently Nevada’s 7200 Proximity Transducer Systems. -
How is the probe installed?
The standard mount design allows for straightforward installation using the 3/8-24 UNF thread.
Recommended Models – Same Series or Related
| Model Number | Description | Thread Size | Cable Length | Connector Type |
| 21504-000-008-10-02 | 8 mm Standard Mount Probe with 1.0 meter cable | 3/8-24 UNF | 1.0 meter | Miniature male coaxial connector |
| 21504-000-016-05-02 | 8 mm Reverse Mount Probe with 0.5 meter cable | 3/8-24 UNF | 0.5 meter | Miniature male coaxial connector |
| 21504-000-016-10-02 | 8 mm Reverse Mount Probe with 1.0 meter cable | 3/8-24 UNF | 1.0 meter | Miniature male coaxial connector |
| 21504-000-008-05-01 | 8 mm Standard Mount Probe with 0.5 meter cable, different connector | 3/8-24 UNF | 0.5 meter | Alternative connector type |
| 21504-000-008-10-01 | 8 mm Standard Mount Probe with 1.0 meter cable, different connector | 3/8-24 UNF | 1.0 meter | Alternative connector type |
| 21504-000-016-05-01 | 8 mm Reverse Mount Probe with 0.5 meter cable, different connector | 3/8-24 UNF | 0.5 meter | Alternative connector type |
