Product Introduction

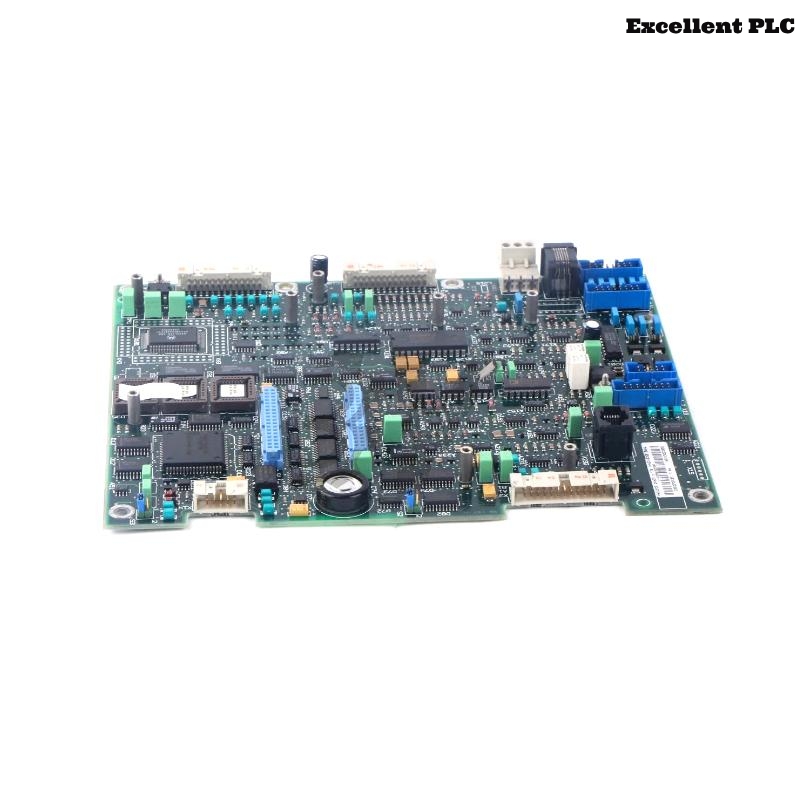

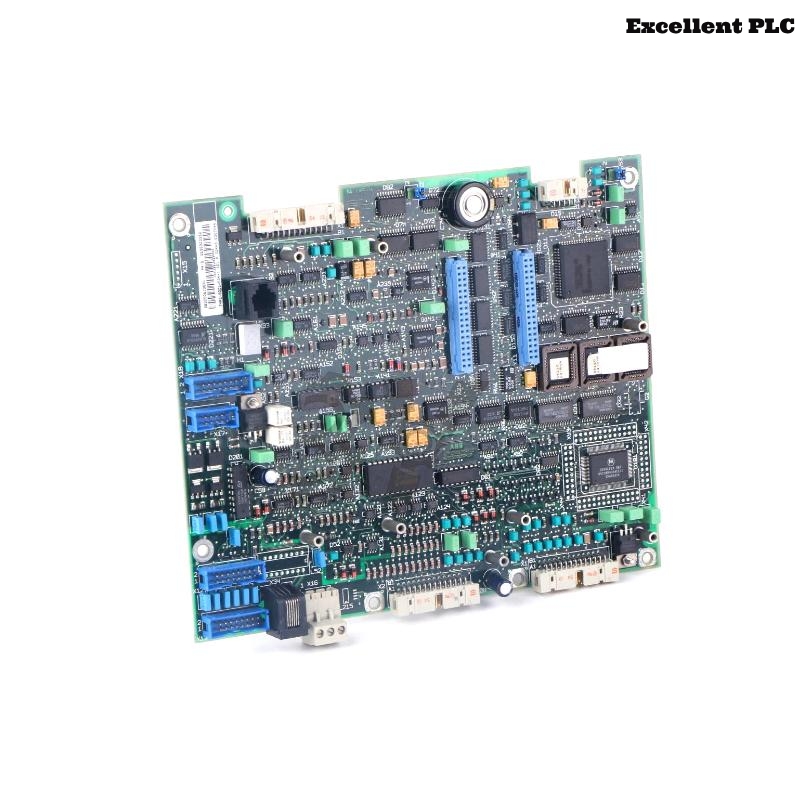

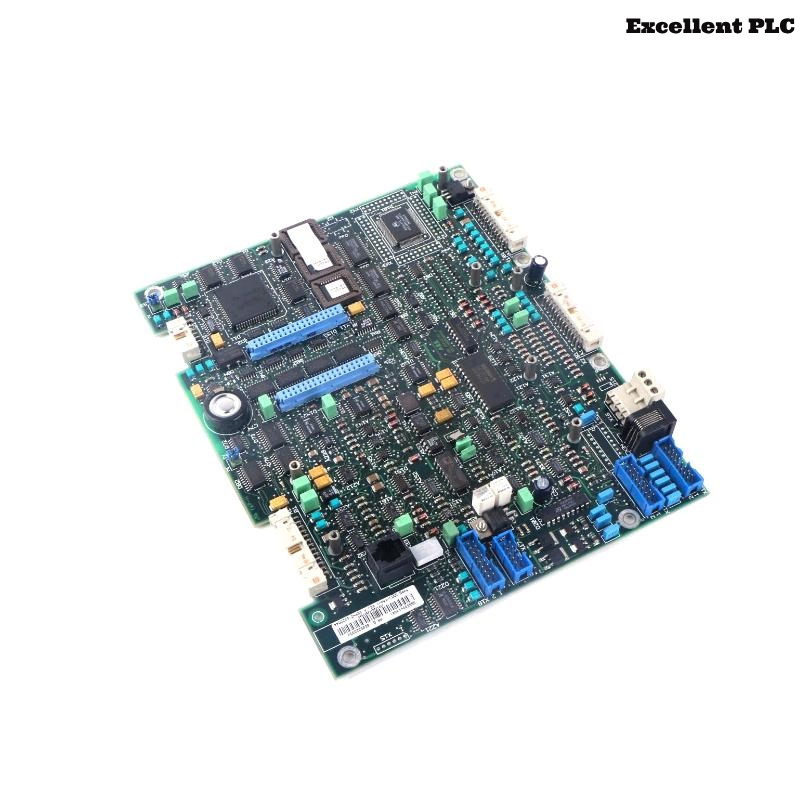

ABB SDCS-CON-1 3BSE006196R1 Control Board is a core component of the ABB DCS (Drive Control System) series. Designed for reliable control and communication within industrial drive systems, this board functions as a key interface between the main processor and various peripherals. It is widely used in DC drive systems to manage and process control signals with high accuracy and stability.
The SDCS-CON-1 board ensures smooth operation of complex industrial machinery by facilitating effective signal transmission and command execution. Thanks to ABB’s engineering excellence, the board guarantees long-term durability and excellent performance, even under harsh industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | SDCS-CON-1 |
| Product Code | 3BSE006196R1 |
| Brand | ABB |
| Type | Control Board for DC Drives |
| Function | Communication & control interface within drive system |
| Operating Voltage | 24V DC |
| Communication Interface | Fiber optic, serial link (depending on drive configuration) |
| Compatibility | ABB DCS400 / DCS500 / DCS600 series |
| Mounting | Plug-in PCB module |
| Environmental Protection | Conformal coating, industrial-grade temperature resistance |
| Ambient Temperature Range | -10°C to +60°C |
| Relative Humidity | 5%–95% non-condensing |
| Dimensions (L x W x H) | 250 × 180 × 30 mm |
| Weight | 0.308 kg |
| Certifications | CE, RoHS compliant |
Applications
-
DC Motor Drives – Used extensively in ABB’s DCS400, DCS500, and DCS600 series to control and coordinate drive operations.
-
Industrial Automation – Common in applications requiring precise speed and torque control such as rolling mills, paper machines, and crane systems.
-
Retrofit Projects – A popular choice for upgrading older ABB DC drive systems.
-
Heavy Industry – Including mining, metal processing, and marine applications where robust and dependable control is critical.
Advantages
-
High Reliability: Manufactured under stringent quality control, the board provides consistent performance in demanding industrial settings.
-
Seamless Integration: Easily integrates with ABB drive systems, minimizing installation complexity and downtime.
-
Long Service Life: Built with industrial-grade components and protective coating for longevity.
-
Stable Communication: Equipped with robust communication ports and fast processing capability for real-time data handling.
-
Global Support: Backed by ABB’s worldwide service network ensuring technical support and spare parts availability.
-
Versatile Application: Suitable for a wide range of industrial DC drive systems.
Frequently Asked Questions (FAQ)
-
Q: What drive systems is the SDCS-CON-1 board compatible with?
A: It is compatible with ABB’s DCS400, DCS500, and DCS600 drive families. -
Q: Can this board be used for retrofitting older systems?
A: Yes, it is widely used for replacing or upgrading control boards in legacy ABB drive installations. -
Q: What is the operating voltage of the SDCS-CON-1?
A: The board operates at a nominal voltage of 24V DC. -
Q: Does the board require any software for configuration?
A: Yes, configuration is typically performed using ABB drive software tools or via integrated interfaces. -
Q: Is it possible to use this board in high-humidity environments?
A: Yes, it is protected by conformal coating and can operate in environments with up to 95% relative humidity. -
Q: How is the board installed in the drive system?
A: It is designed as a plug-in PCB module for easy and secure installation. -
Q: What communication interfaces are supported?
A: Fiber optic and serial communication interfaces are supported, depending on the configuration. -
Q: Is there any onboard memory or processing capability?
A: Yes, it features processing capability to manage control logic and signal flow. -
Q: What maintenance is required?
A: Minimal maintenance is needed, typically visual inspection for damage and periodic cleaning in dusty environments. -
Q: What is the expected lifespan of this board in continuous operation?
A: When operated within recommended conditions, it can function reliably for over 10 years.
Related Models (Same Series or Functionally Related)
| Model | Description | Compatibility |
|---|---|---|
| SDCS-PIN-41 | Pulse interface board | DCS500, DCS600 |
| SDCS-PIN-51 | Pulse interface with extended IO | DCS500, DCS600 |
| SDCS-IOB-1 | Input/output board | DCS400, DCS500 |
| SDCS-COM-8 | Communication board with fiber optic interface | DCS500 |
| SDCS-FEX-1 | Firing and feedback interface board | DCS600 |
| SDCS-PIN-95 | Encoder input module | DCS400, DCS500 |
Popular ABB Models (Cross-Series Recommendations)
| Model | Description | Application |
|---|---|---|
| 07KT98 | Communication Processor Module | Control systems |
| 07AC91 | Analog Input Module | Process automation |
| PM864AK01 | AC 800M Controller | PLC systems |
| CI854AK01 | Fieldbus Communication Interface for Profibus | Industrial networking |
| AI810 | Analog Input Module 8-channel | Measurement and monitoring |
| PM802F | CPU module with Ethernet | Compact control applications |
