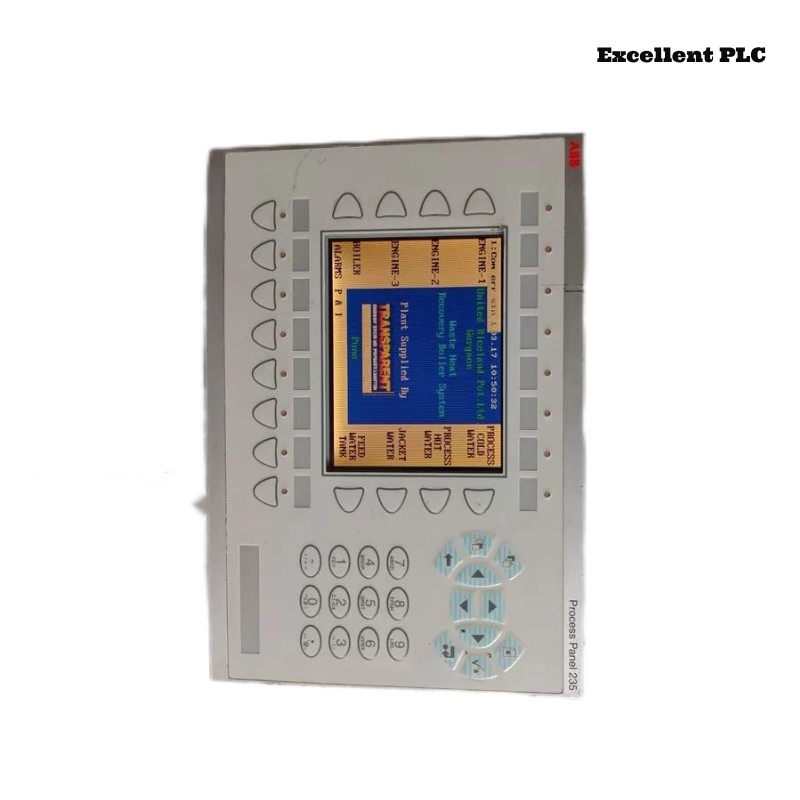

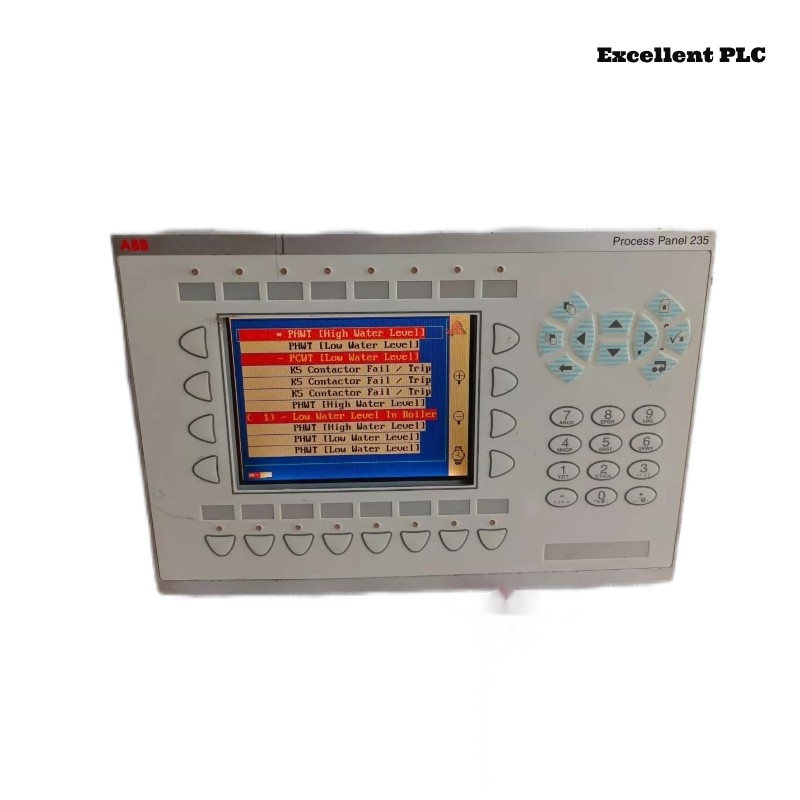

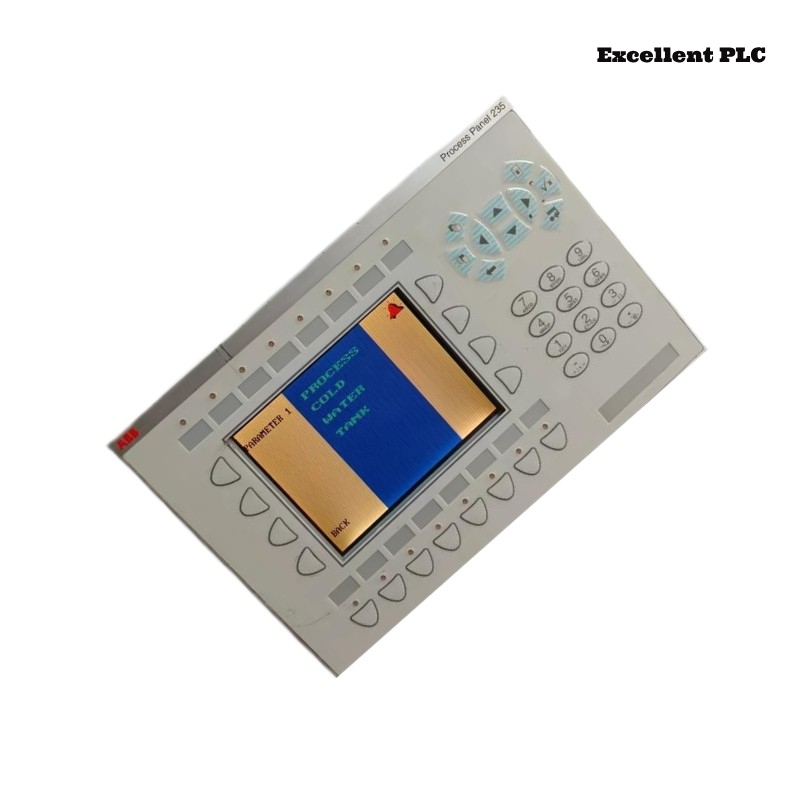

ABB PP235 3BSC690102R2 Operation Panel Screen
1. Product Overview
The ABB PP235 3BSC690102R2 Operation Panel Screen is a vital human-machine interface (HMI) designed for advanced industrial automation environments. Featuring a high-resolution touchscreen and intuitive graphical user interface, the panel allows real-time system monitoring and efficient command input, significantly enhancing operational efficiency and system responsiveness.
This panel integrates seamlessly with ABB’s 800xA system and other control platforms, making it ideal for applications in manufacturing, energy, petrochemical, and process control industries. Built with industrial-grade materials, the PP235 delivers reliable performance in demanding environments, ensuring long-term system availability and durability.
2. Key Features
-
High-Resolution Touch Display: Offers an intuitive GUI with multi-touch support for fast and accurate control.
-
Industrial-Grade Design: Built to withstand high temperatures and vibrations, suitable for rugged environments.
-
Versatile Communication Interfaces: Equipped with Ethernet, RS232/RS485, and USB ports for flexible integration.
-
Easy Installation: Supports both panel mounting and DIN rail installation, saving space and simplifying setup.
-
Real-Time Monitoring: Displays real-time process data, alarms, and system feedback for enhanced visibility.
-
Wide Compatibility: Fully compatible with ABB systems and expandable to third-party platforms.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 mm x 149mm x 50 mm |
| Weight | 0.002kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | PP235 3BSC690102R2 |
| Manufacturer | ABB |
| Power Supply | 24 V DC ±10% |
| Mounting | Panel Mount / DIN Rail |
| Protection Class | IP65 (Front Panel) |
| Operating Temp | -10°C to +60°C |
| Humidity | 5% – 95% RH (non-condensing) |
3.3 Display & Input
| Item | Specification |
|---|---|
| Display Type | TFT Color LCD Touchscreen |
| Screen Size | 7 inches |
| Resolution | 800 x 480 pixels |
| Backlight | LED, ≥ 50,000 hours |
| Input Method | Resistive Touch, Multi-Touch Support |
3.4 Communication & Interfaces
| Item | Specification |
|---|---|
| Interfaces | Ethernet, USB, RS-232, RS-485 |
| Supported Protocols | Modbus TCP/IP, OPC, Profibus, etc. |
| Data Storage | Built-in Flash & Expandable SD Storage |
| System Compatibility | ABB 800xA & Third-party Platforms Supported |
4. Industry Applications
The ABB PP235 3BSC690102R2 operation panel is widely deployed in industrial systems for HMI interaction, system visualization, and process control. Typical applications include:
-
Automated Production Lines: Visualize workflows and provide direct operator control for efficient operations.
-
Energy and Power Systems: Enable monitoring and control in substations, wind farms, and more.
-
Chemical and Oil & Gas: Provide a robust interface for hazardous or high-demand control environments.
-
Manufacturing Industry: Serve as on-site terminals for CNC machines and automated assembly lines.
-
Environmental and Water Treatment: Manage and display sensor data and equipment status for process efficiency.
This operation panel is a powerful tool for modern industrial automation, offering performance, durability, and intuitive control in one compact unit.
