Product Introduction

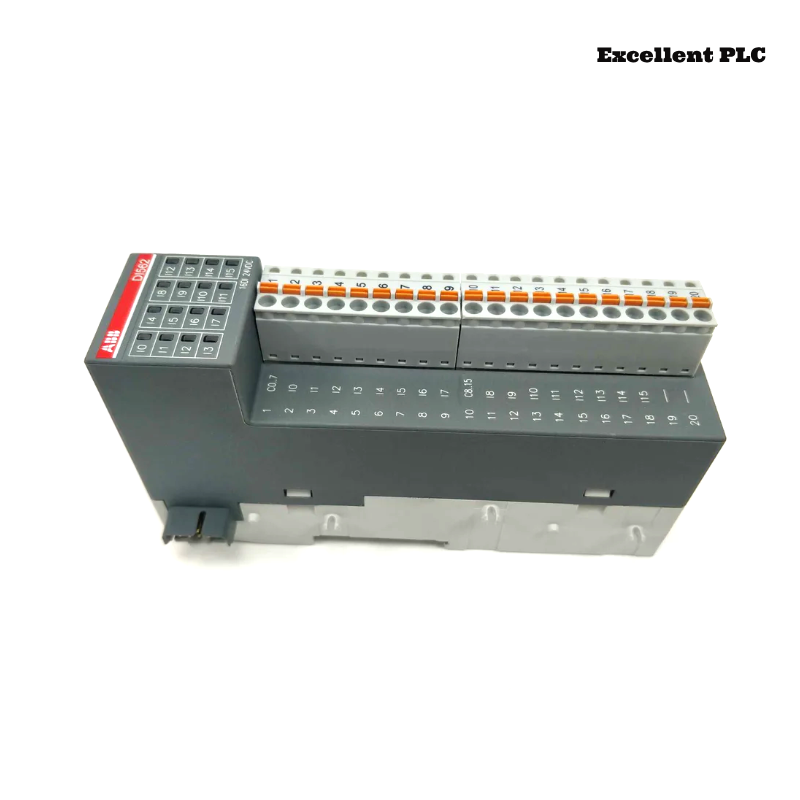

The ABB DI562 1TNE968902R2102 is a high-performance digital input module designed for industrial automation and control applications. This module is part of ABB’s renowned AC500 series, ensuring reliability, precision, and efficiency in processing digital signals. The DI562 module is widely used in industrial environments where precise monitoring of digital inputs is required. It supports 24 V DC signals and provides robust performance in harsh conditions, making it an ideal choice for PLC-based automation systems.
With 16 input channels, the module allows seamless integration into control systems, ensuring efficient data acquisition and processing. Its compact design and high-speed signal processing make it an excellent solution for manufacturing plants, energy sectors, and process industries.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | DI562 1TNE968902R2102 |
| Product Type | Digital Input Module |
| Series | AC500 |
| Number of Inputs | 16 |
| Input Voltage | 24 V DC |
| Input Signal Type | Sink/Source |
| Input Delay Time | < 3 ms |
| Isolation | Optical Isolation |
| Current Consumption | Typically 80 mA at 24 V DC |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% (non-condensing) |
| Protection Rating | IP20 |
| Communication Interface | Backplane bus |
| Module Dimensions (W x H x D) | 135 x 74 x 34 mm |
| Weight | 0.113 kg |
Applications
The ABB DI562 1TNE968902R2102 Digital Input Module is widely used in various industrial automation and control applications, including:
-
Manufacturing Automation: Integrates with PLCs for efficient monitoring and control of digital inputs in production lines.
-
Process Industry: Used in industries such as oil & gas, water treatment, and pharmaceuticals for signal acquisition.
-
Energy Sector: Deployed in power plants and substations for real-time monitoring of electrical systems.
-
Building Automation: Provides control solutions in HVAC, lighting, and security systems.
-
Transportation Systems: Plays a role in railway and traffic control automation.
-
Machine Control: Ensures reliable input detection for industrial machines and robotic systems.
Product Advantages
-
High Reliability – Designed for industrial environments with rugged construction and high durability.
-
Fast Processing – Low input delay time (<3ms) ensures real-time response in automation systems.
-
Flexible Input Configuration – Supports both sink and source inputs for versatile applications.
-
Compact Design – Space-efficient module fits easily into control cabinets.
-
Wide Operating Temperature Range – Performs reliably between -25°C and +60°C.
-
Low Power Consumption – Consumes only 80 mA at 24V DC, optimizing energy efficiency.
-
Strong Isolation – Provides optical isolation to protect against electrical interference.
-
Seamless Integration – Compatible with ABB AC500 PLC systems, ensuring easy connectivity.
-
IP20 Protection – Suitable for industrial environments with basic protection against dust and debris.
-
Trusted Brand – Manufactured by ABB, a global leader in automation and power technology.
Latest News Titles
-
ABB Enhances AC500 Series with New Digital Input Solutions
-
Industrial Automation: ABB Digital Input Modules Revolutionizing PLC Systems
-
ABB DI562: A Game-Changer in Manufacturing Automation
-
Energy Efficiency with ABB AC500 PLC Modules
-
ABB’s Expansion in Industrial Digitalization and Automation Solutions
-
New Trends in Digital Input Modules – ABB Leading the Way
-
ABB DI562 Module: Improving Safety and Efficiency in Process Industries
-
Why ABB’s Digital Input Modules are the Future of Industrial Automation
-
ABB AC500 Series: Setting New Standards for Reliability and Performance
-
Upgrading Automation Systems? ABB DI562 is the Right Choice
Frequently Asked Questions (FAQ)
-
What is the ABB DI562 1TNE968902R2102 used for?
The module is used for digital input signal acquisition in PLC-based automation systems. -
How many digital input channels does the DI562 module have?
It has 16 digital input channels for processing industrial signals. -
What is the operating voltage of the DI562 module?
The module operates at 24V DC. -
Can this module be used with non-ABB PLCs?
While it is designed for ABB AC500 PLC systems, it may be used with other systems via compatible interfaces. -
Is the DI562 module suitable for harsh environments?
Yes, it has an IP20 protection rating and operates in temperatures ranging from -25°C to +60°C. -
Does the module support optical isolation?
Yes, the DI562 module includes optical isolation for signal protection. -
What is the weight of the DI562 module?
The module weighs approximately 200 grams. -
What is the response time of this module?
The input delay time is less than 3ms, making it suitable for fast automation processes. -
Can I use this module for machine control applications?
Yes, the DI562 module is ideal for machine control, manufacturing automation, and process control. -
Is additional wiring required for installation?
The module is designed for direct mounting on an ABB AC500 PLC system, requiring only standard 24V DC wiring for input connections.
Related Models from the Same Series
| Model | Description | Input Channels | Voltage |
|---|---|---|---|
| DI561 | Digital Input Module | 8 | 24V DC |
| DI572 | Digital Input Module | 32 | 24V DC |
| AI561 | Analog Input Module | 8 | 0-10V, 4-20mA |
| AO561 | Analog Output Module | 4 | 0-10V, 4-20mA |
| DX561 | Mixed Digital Input/Output Module | 16 IN / 16 OUT | 24V DC |
| DO562 | Digital Output Module | 16 | 24V DC |
| CM579 | Communication Module | 8 | 24V DC |
| PM573 | PLC CPU Module | 8 | 24V DC |
