Product Introduction

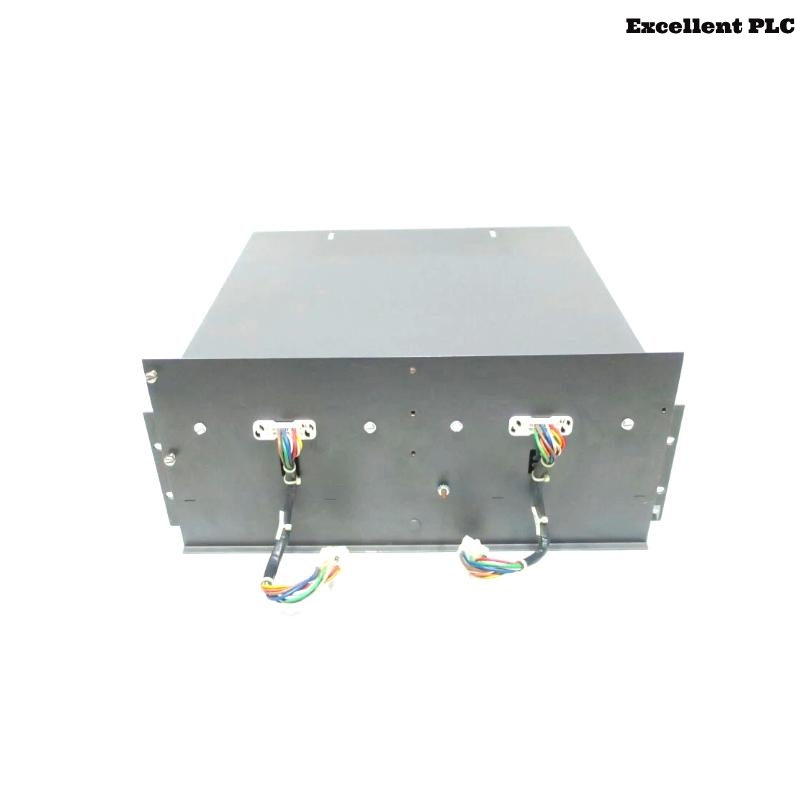

The ABB Bailey IPFCH01 Power Fan Chassis is a key component designed to maintain optimal thermal conditions within industrial control system enclosures. This unit is specifically engineered for Bailey Infi 90 and Symphony systems, which are widely used in process automation across various industries. By ensuring stable airflow and preventing overheating, the IPFCH01 enhances the reliability and longevity of critical system modules housed within the rack.
ABB’s commitment to robust design and industrial-grade performance is clearly evident in the IPFCH01. Built to withstand harsh industrial environments, it supports high-density electronic configurations by maintaining consistent airflow through the chassis. The fan unit is easy to install, hot-swappable in many configurations, and designed to require minimal maintenance over long-term operation.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | IPFCH01 |
| Function | Power Fan Chassis / Cooling Assembly |
| System Compatibility | Bailey Infi 90, Symphony |
| Voltage Input | 24 VDC (Nominal) |
| Power Consumption | Approx. 50W |
| Airflow Capacity | Up to 75 CFM |
| Fan Configuration | Dual high-reliability axial fans |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Cooling Method | Forced-air ventilation |
| Mounting Type | Rack-mounted |
| Material | Industrial-grade aluminum alloy |
| Dimensions (L×W×H) | 482.6 × 133.4 × 152.4 mm |
| Weight | 9.98 kg |
| Certifications | CE, RoHS, UL (depending on configuration) |
Applications
The ABB IPFCH01 Power Fan Chassis is typically deployed in the following scenarios:
-
Industrial Automation Racks: Ensures stable thermal management in control system cabinets.
-
Process Control Systems: Used with ABB Bailey Infi 90 and Symphony systems in refining, chemical, power generation, and water treatment plants.
-
Server and Data Acquisition Racks: Where consistent airflow is required to prevent overheating of high-performance modules.
-
Redundant System Enclosures: Helps maintain system availability by preventing heat-related failures in mission-critical environments.
Key Advantages
-
Optimized Thermal Control: Maintains a stable internal environment, significantly reducing the risk of equipment overheating.
-
Long Service Life: Equipped with industrial-grade fans engineered for continuous operation in demanding conditions.
-
Ease of Maintenance: Fans can often be replaced without removing the entire chassis from the rack.
-
Space-Efficient Design: Compact form factor allows for easy integration into standard 19” rack systems.
-
Seamless Integration: Fully compatible with ABB’s Bailey Infi 90 and Symphony systems.
-
High Reliability: Suitable for continuous-duty applications in critical infrastructure environments.
Frequently Asked Questions (FAQ)
-
Q: What systems is the IPFCH01 compatible with?
A: The IPFCH01 is primarily compatible with ABB’s Bailey Infi 90 and Symphony DCS systems. -
Q: Can the fans in the IPFCH01 be replaced individually?
A: Yes, the fan units are often hot-swappable depending on the installation, allowing for easy maintenance. -
Q: What is the airflow capacity of this unit?
A: The chassis is capable of providing up to 75 cubic feet per minute (CFM) of airflow. -
Q: Is the unit suitable for outdoor installation?
A: No, it is designed for indoor, rack-mounted applications in protected environments. -
Q: Does it support redundant cooling systems?
A: While it does not provide built-in redundancy, multiple IPFCH01 units can be used in tandem to ensure backup airflow. -
Q: Is the fan chassis CE certified?
A: Yes, many configurations of the IPFCH01 are CE and UL certified. -
Q: What is the typical noise level of this unit?
A: Under normal operation, the noise level is under 50 dBA, depending on load and environment. -
Q: Can the IPFCH01 be monitored remotely?
A: The unit itself does not have built-in remote monitoring, but external sensors can be used for airflow and temperature. -
Q: How do I mount this chassis?
A: It is designed to be mounted in a standard 19” rack enclosure, occupying 3U of vertical space. -
Q: What maintenance is required?
A: Periodic cleaning of dust filters and inspection of fan operation is recommended every 6–12 months.
Related Models (Same Series or Application Compatibility)
| Model | Description | System Compatibility |
|---|---|---|
| IPFCH02 | Advanced version with thermal monitoring | Bailey Symphony, Infi 90 |
| INICT13A | Network Interface Communication Module | Infi 90 |
| IMMFP12 | Multi-Function Processor Module | Infi 90 |
| INNIS21 | Network Interface Slave Module | Symphony |
| INNPM22 | Network Power Module | Infi 90 |
| INPCI01 | Peripheral Control Interface | Bailey Systems |
