Product Introduction

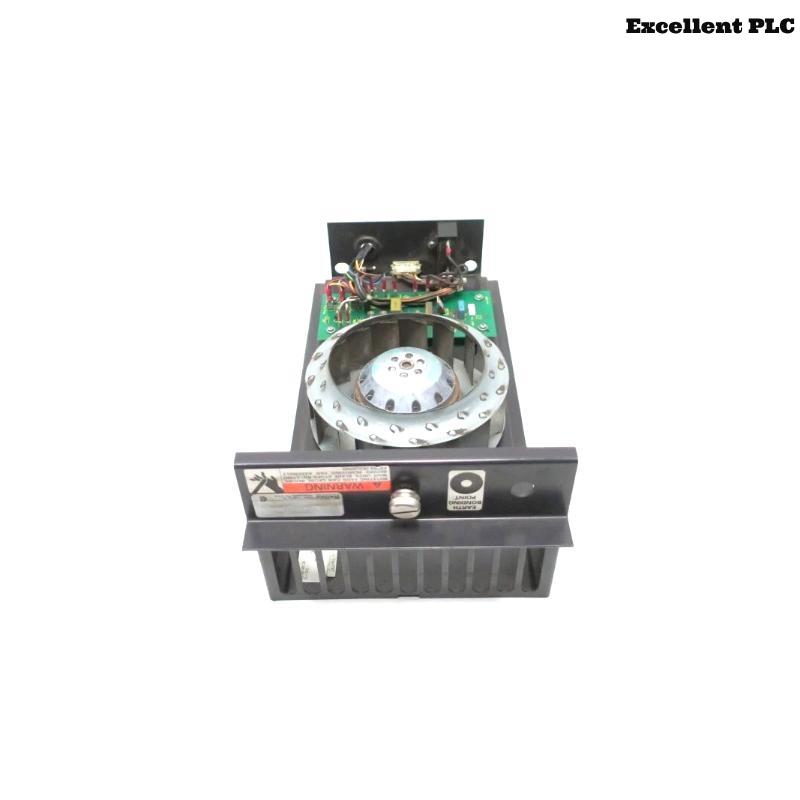

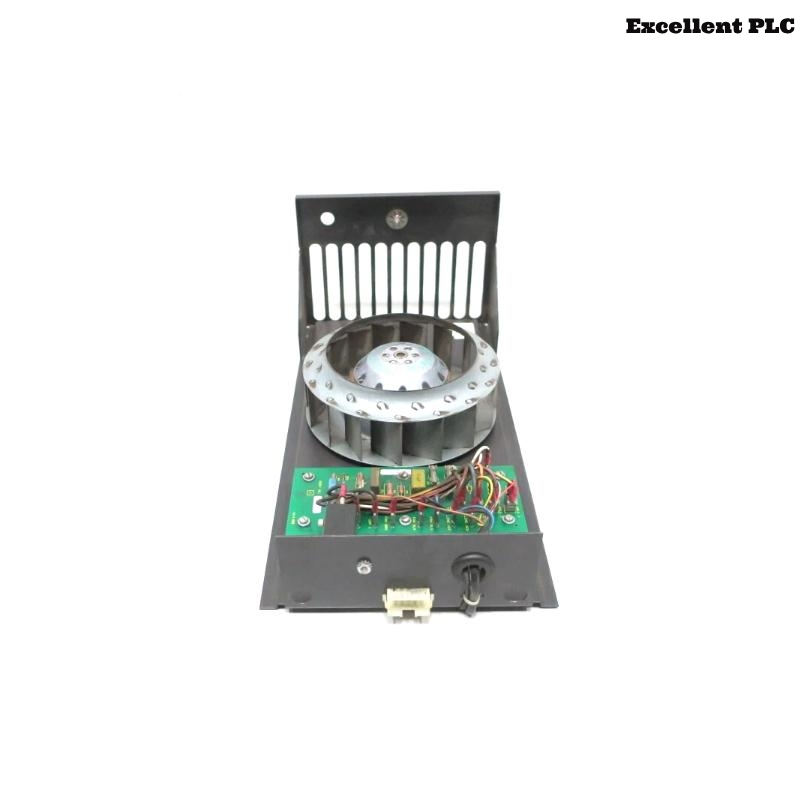

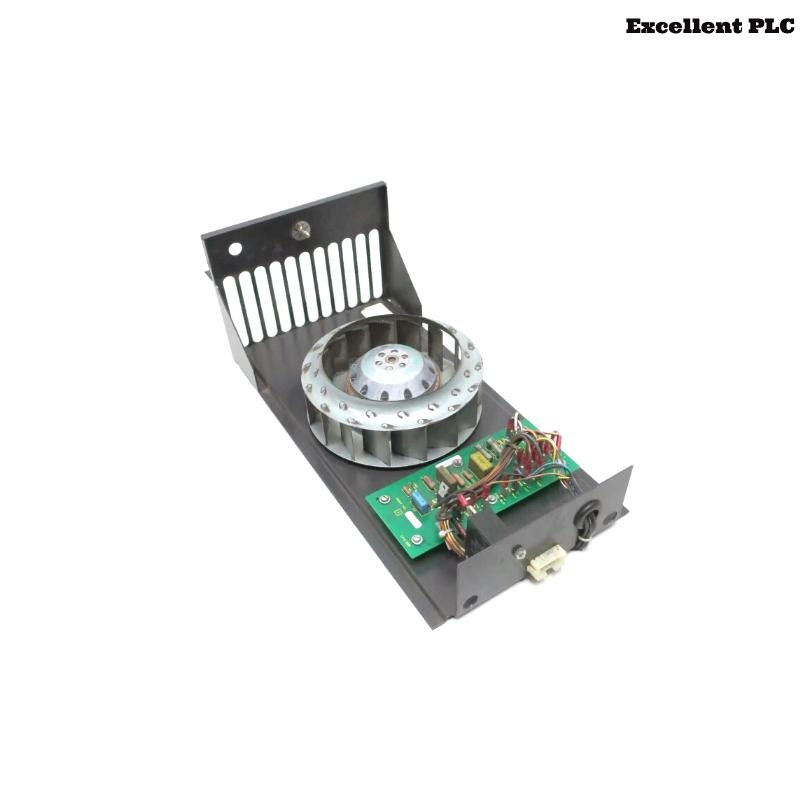

The ABB Bailey IPFAN11 Fan Module is a crucial component of the Bailey INFI 90® distributed control system (DCS) and provides essential support for controlling and managing fans within various industrial environments. It is part of ABB’s broad offering of modular, flexible, and high-performance control systems designed to improve operational efficiency and reduce downtime.
The IPFAN11 Fan Module is designed to handle the control and monitoring of industrial fan systems, ensuring smooth operation in various sectors, including manufacturing, power generation, and chemical processing. It operates as an interface between the DCS and the fan system, delivering real-time data for fan performance monitoring and control. This module ensures that fan systems maintain the required parameters for optimal performance, minimizing energy consumption while ensuring reliability and stability.
Product Specifications
| Parameter | Details |
| Model Number | IPFAN11 |
| Part Number | N/A |
| Control System | ABB Bailey INFI 90® DCS |
| Input Type | Analog Input (Current or Voltage) |
| Output Type | Analog Output (Current or Voltage) |
| Channels | Up to 4 analog channels for fan control |
| Power Supply | 24V DC, +10%/-15% |
| Mounting Type | Rack-mounted |
| Communication Protocol | RS485 Modbus RTU |
| Operating Temperature | -20°C to +70°C |
| Module Dimensions | 152.4 × 210.82 × 444.5 mm |
| Weight | 3.23 kg |
| Certifications | UL, CE, RoHS |
| Power Consumption | 50W maximum |
Product Applications
The ABB Bailey IPFAN11 Fan Module is widely used in applications where fan performance and control are critical for system reliability and efficiency. Some of the primary applications include:
-
Manufacturing: The module helps to regulate and monitor fans used in ventilation, cooling, and exhaust systems, contributing to safer and more efficient manufacturing processes.
-
Power Generation: In power plants, the IPFAN11 module controls the ventilation and cooling fans that maintain optimal temperatures in equipment such as generators and transformers, preventing overheating.
-
Chemical Processing: It is used to control fans in chemical plants, ensuring the proper ventilation of chemical reactions and minimizing risks associated with hazardous gases.
-
HVAC Systems: The module plays a key role in controlling fan systems used in heating, ventilation, and air conditioning, contributing to energy savings and indoor air quality.
-
Oil & Gas: In oil and gas facilities, it helps regulate air circulation and ventilation for equipment cooling and hazardous material management.
-
Mining: The module is used in underground mining operations to monitor and control ventilation systems, ensuring air quality and safety in confined spaces.
Product Advantages
-
Real-Time Monitoring: The IPFAN11 provides real-time data on fan performance, helping operators to identify any issues early and reduce the risk of system failures.
-
Energy Efficiency: By optimizing fan speeds and performance based on real-time operational conditions, the module helps reduce energy consumption, contributing to overall cost savings.
-
Modular Design: The module can be easily integrated into existing ABB Bailey INFI 90® control systems, offering flexibility and scalability for future expansion.
-
Durable and Reliable: Designed for use in harsh industrial environments, the IPFAN11 can withstand temperatures from -20°C to +70°C and is built to operate reliably over long periods.
-
Ease of Installation: The IPFAN11 module is rack-mounted, making installation straightforward and reducing the complexity of wiring and integration into existing control systems.
-
Advanced Communication Protocols: With RS485 Modbus RTU communication, the module can be easily connected to other devices in the control system for seamless integration.
-
Compliance with Safety Standards: The IPFAN11 is UL, CE, and RoHS certified, ensuring it meets international safety and environmental standards.
Frequently Asked Questions (FAQ)
-
What is the function of the ABB Bailey IPFAN11 Fan Module?
-
The IPFAN11 module is used to control and monitor fan systems within industrial applications, ensuring optimal performance and energy efficiency.
-
-
How many input and output channels does the IPFAN11 module support?
-
The module supports up to 4 analog input and output channels for fan control.
-
-
What type of communication protocol does the IPFAN11 use?
-
It uses RS485 Modbus RTU communication, which allows easy integration with other devices in the control system.
-
-
What is the power supply requirement for the IPFAN11 module?
-
The IPFAN11 requires a 24V DC power supply, with a tolerance of +10%/-15%.
-
-
Can the IPFAN11 be used in extreme temperatures?
-
Yes, the module operates within a temperature range of -20°C to +70°C, making it suitable for a wide range of industrial environments.
-
-
Is the IPFAN11 compatible with other ABB control systems?
-
Yes, the IPFAN11 is part of the ABB Bailey INFI 90® DCS, but it can also be integrated into other ABB control systems with compatible communication protocols.
-
-
How is the IPFAN11 mounted?
-
The module is rack-mounted, which makes installation easier and more flexible.
-
-
What are the typical applications for the IPFAN11 module?
-
It is commonly used in industries like power generation, chemical processing, HVAC systems, and oil & gas for fan control and monitoring.
-
-
What certifications does the IPFAN11 have?
-
The IPFAN11 is certified for UL, CE, and RoHS compliance, meeting international safety and environmental standards.
-
-
What is the weight and size of the IPFAN11 module?
-
The module weighs 3.23 kg and has dimensions of 152.4 × 210.82 × 444.5 mm.
-
