Product Introduction

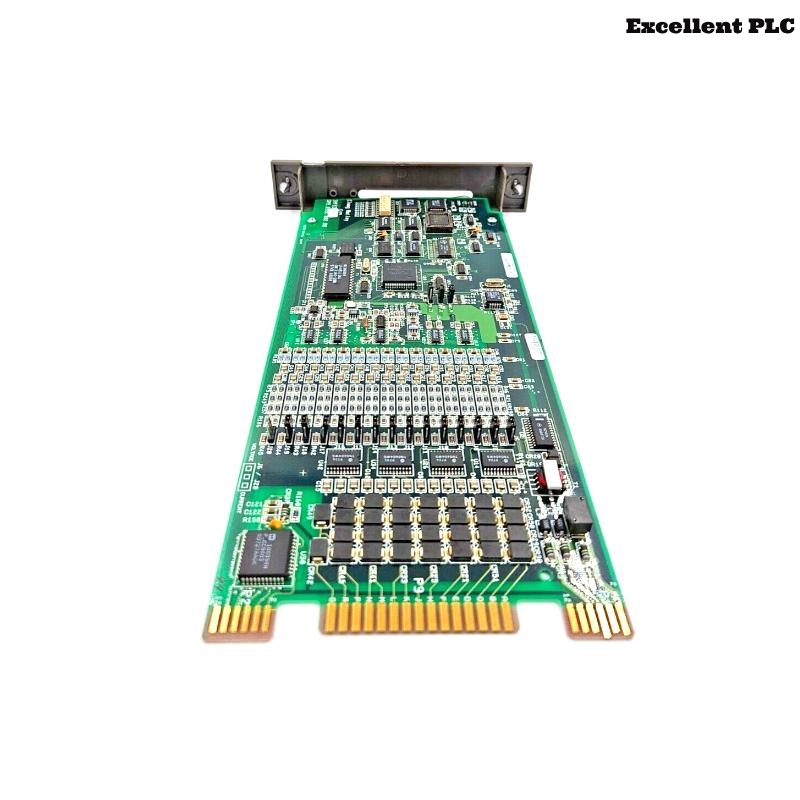

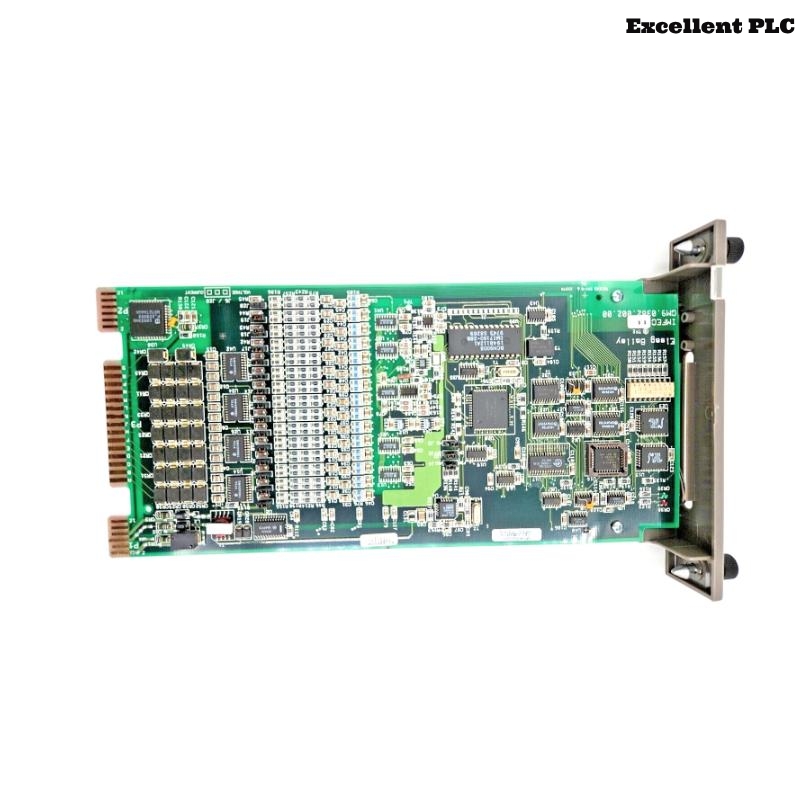

The ABB Bailey IMFEC11 Analog Input Module is an essential part of the ABB INFI 90 distributed control system (DCS), specifically designed to handle high-precision analog signal acquisition from a wide range of industrial field instruments. It acts as the interface between analog field signals—such as 4–20 mA or 1–5 V signals—and the control system, allowing accurate monitoring of process variables like pressure, temperature, level, and flow.
IMFEC11 is part of the Field Entry Cabinet (FEC) family and offers advanced signal conditioning and diagnostics features. Each input is individually isolated, and the module provides filtering and conversion to digital format for processing in the control system. Known for its rugged build quality, the IMFEC11 is suitable for mission-critical applications in power generation, chemical processing, oil and gas, water treatment, and more. It supports a modular rack-mount design and works seamlessly within the ABB Symphony and INFI 90 series control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IMFEC11 |
| Manufacturer | ABB (Bailey Controls) |
| Product Type | Analog Input Module (FEC – Field Entry Cabinet series) |
| Input Channels | 16 Analog Input Channels |
| Input Signal Range | 4–20 mA, 0–10 V, or 1–5 V (configurable per channel) |
| Resolution | 12-bit or higher (depending on system configuration) |
| Input Isolation | Channel-to-channel and channel-to-system isolation |
| Filtering | Hardware low-pass filtering per input |
| Input Impedance | > 250 Ohms (current); > 1 MΩ (voltage) |
| Calibration | Factory calibrated; software offset/scale adjustment |
| Mounting Type | DIN rail or rack-mounted in FEC |
| System Integration | INFI 90, Symphony, Symphony Plus |
| Communication Interface | Internal bus (via FEC backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Diagnostics | Built-in signal fault and loop integrity monitoring |
| Status Indicators | LED per channel (signal OK/fault) |
| Power Supply | Via system backplane |
| Dimensions (L x W x H) | 132 x 25 x 125 mm |
| Weight | 0.567 kg |
| Certifications | CE, UL, CSA, RoHS (subject to system certification) |
Product Applications
-
Process Variable Monitoring: Ideal for interfacing with field transmitters to measure pressure, temperature, flow, level, and analytical values.
-
Energy Sector: Extensively used in power plants (thermal, hydro, nuclear) for precision monitoring and control.
-
Chemical and Petrochemical Plants: Gathers real-time process conditions critical for continuous chemical reactions.
-
Oil and Gas: Captures analog input from tank level sensors, gas flowmeters, and well pressure transmitters.
-
Water and Wastewater Treatment: Receives signals from sensors monitoring pH, flow, and turbidity.
-
Manufacturing and Automation: Works within complex control loops in batch processing, metal forming, or food processing lines.
Product Advantages
-
High Accuracy: Offers precision analog input handling with excellent linearity and noise rejection.
-
Complete Isolation: Each input is electrically isolated, enhancing system reliability and safety.
-
Field-Proven Reliability: Designed for critical industrial operations where downtime is unacceptable.
-
Flexible Input Handling: Accommodates both current and voltage signals with configurable ranges.
-
Built-In Diagnostics: Provides loop integrity and signal loss alerts, simplifying maintenance and troubleshooting.
-
Seamless DCS Integration: Fully compatible with ABB Symphony and INFI 90 systems.
-
Compact Design: Space-saving format suitable for dense cabinet installations.
-
Extended Support: Supported under ABB’s long-term maintenance and lifecycle services.
Frequently Asked Questions (FAQ)
-
Q: What type of analog signals can the IMFEC11 module accept?
A: The module supports 4–20 mA, 0–10 V, and 1–5 V signals on each of its 16 input channels. -
Q: Is channel isolation provided on this module?
A: Yes, each input channel is isolated from others and from the system for enhanced protection. -
Q: Can I mix current and voltage inputs on the same module?
A: Yes, IMFEC11 allows per-channel configuration of input signal type. -
Q: What is the resolution of the analog inputs?
A: The typical resolution is 12-bit or higher, depending on the connected controller. -
Q: Does it support diagnostics?
A: Yes, it includes built-in diagnostics such as signal loss detection and LED status indicators. -
Q: Is IMFEC11 hot-swappable?
A: It is not recommended to insert or remove modules while the system is powered; follow standard shutdown procedures. -
Q: What systems is this module compatible with?
A: It is compatible with ABB INFI 90, Symphony, and Symphony Plus control systems. -
Q: Can I use it in hazardous environments?
A: Check the cabinet certification; the module itself is used in approved control panels rated for industrial use. -
Q: What’s the typical application in power plants?
A: It’s used to read pressure, temperature, and flow signals from transmitters across turbine and boiler systems. -
Q: How is it mounted and powered?
A: It mounts in a Field Entry Cabinet and is powered via the system’s backplane bus.
