Product Overview

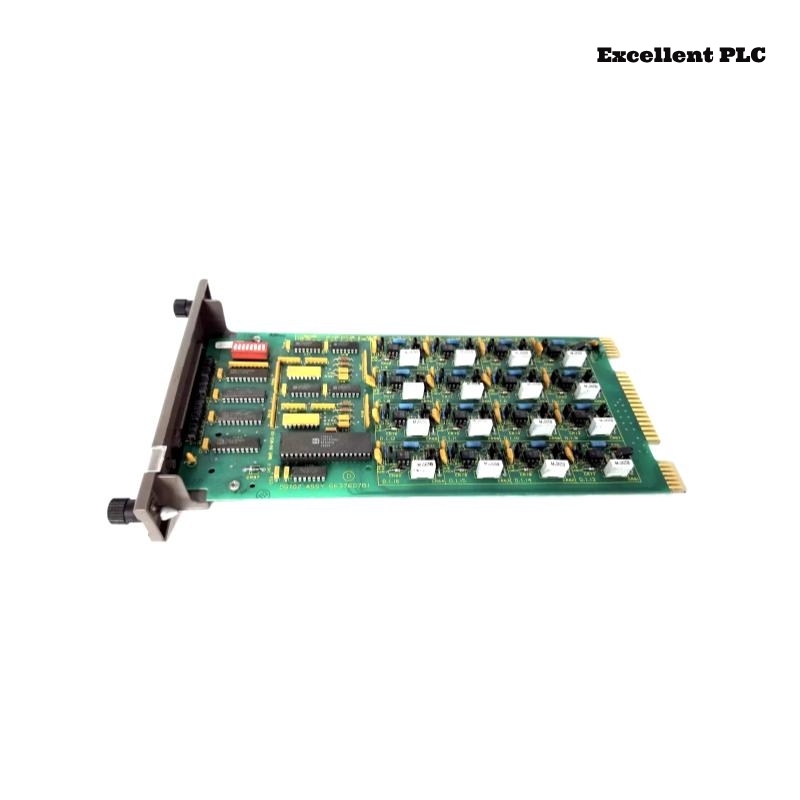

The ABB Bailey IMDSI02 Digital Output Slave Module is a key component of ABB’s Bailey INFI 90 Distributed Control System (DCS). It is designed to provide high-performance digital output control, ensuring seamless and reliable communication with various external devices like actuators, valves, and motor controllers. The module’s integration into the INFI 90 DCS enhances process automation by providing precise control and diagnostics, contributing to operational safety and efficiency across industries such as power generation, oil and gas, and chemical processing.
The IMDSI02 Digital Output Slave Module is part of ABB’s innovative automation technology. It features advanced communication protocols and diagnostic tools that ensure continuous system operation with minimal downtime. The module plays a vital role in controlling critical output devices, optimizing industrial processes, and improving system reliability in harsh operational environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ABB Bailey IMDSI02 |
| Module Type | Digital Output Slave Module |
| Number of Channels | 16 Digital Output Channels |
| Output Type | Dry Contact (Relay Output) |
| Output Rating | 24 VDC, 0.5 A maximum per channel |
| Communication Protocol | Profibus DP |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | 3.6 W maximum |
| Dimensions (W x H x D) | 120 x 80 x 60 mm |
| Weight | 0.454 kg |
| Mounting | DIN Rail or Panel Mount |
| Diagnostic Features | LED indicators for Power, Status, and Communication |
| Protection | Overload protection per channel |
Applications
The ABB Bailey IMDSI02 Digital Output Slave Module is primarily used in industries where high-reliability output control is required. Typical applications include:
-
Oil and Gas Industry: The IMDSI02 module provides reliable control for critical systems such as valves, actuators, and pump motors in upstream and downstream operations.
-
Power Generation: The module is integral in controlling output devices such as turbine control systems, safety shutdown systems, and other vital power plant equipment.
-
Chemical and Petrochemical: This module is used in controlling chemical dosing pumps, actuators, and reaction monitoring systems, ensuring the safety and accuracy of production processes.
-
Water and Wastewater Treatment: The IMDSI02 is employed in controlling pumps, valves, and motor systems in water treatment plants, ensuring continuous and effective operation of the facility.
-
Automated Manufacturing: The module is used to manage the operation of automated systems, including production lines, robotic devices, and conveyors, improving system efficiency and precision.
Advantages of ABB Bailey IMDSI02
-
Seamless Integration with INFI 90 System: The IMDSI02 module integrates seamlessly into the Bailey INFI 90 DCS, allowing for easy configuration and reliable communication within the broader system.
-
High-Performance Digital Output: With 16 digital output channels, this module enables precise control of multiple output devices simultaneously, reducing the need for additional modules.
-
Reliable Communication Protocol: The Profibus DP communication protocol ensures reliable, fast, and efficient communication with other system components, minimizing downtime and system failure risks.
-
Compact and Lightweight Design: The IMDSI02 features a compact form factor, measuring just 120 x 80 x 60 mm and weighing 0.454 kg, making it easy to install in space-constrained environments.
-
Overload Protection: Each channel is equipped with overload protection, ensuring safe operation even under high load conditions, which contributes to system longevity and reduces the risk of failure.
-
Advanced Diagnostics: The module features LED indicators for monitoring power, status, and communication, allowing for quick and efficient troubleshooting and system diagnostics.
-
Wide Operating Temperature Range: The IMDSI02 module can operate in harsh environments with an operating temperature range of -20°C to 60°C, making it suitable for a wide variety of industrial applications.
-
Low Power Consumption: Consuming only 3.6 W maximum, the IMDSI02 is energy-efficient while maintaining high performance.
Latest News on ABB Bailey IMDSI02
-
“ABB Bailey IMDSI02: The Reliable Digital Output Module in the Oil and Gas Industry”
This article highlights how the IMDSI02 module has been essential in enhancing operational efficiency and safety in the oil and gas sector. -
“ABB’s IMDSI02 Digital Output Slave Module Enhances Power Plant Control”
A detailed discussion of the IMDSI02’s role in managing critical output systems such as turbines and safety shutdown mechanisms in power plants. -
“Improving Efficiency in Water Treatment with ABB Bailey IMDSI02”
The article discusses how the IMDSI02 module helps improve efficiency and accuracy in water treatment plants by controlling key equipment. -
“ABB Bailey IMDSI02: Key to Automation in Chemical Processing”
Focuses on the importance of the IMDSI02 module in chemical processing plants, where precise output control ensures safety and process accuracy.
Frequently Asked Questions (FAQ)
-
What is the ABB Bailey IMDSI02 Digital Output Slave Module used for?
The IMDSI02 module is used to control output devices such as valves, actuators, and motors in industrial automation systems, particularly in industries like power generation and oil & gas. -
How many channels does the IMDSI02 module have?
The IMDSI02 provides 16 digital output channels, enabling simultaneous control of multiple devices. -
What communication protocol does the IMDSI02 use?
The module uses the Profibus DP communication protocol to ensure fast and reliable communication between the system components. -
What is the maximum power consumption of the IMDSI02 module?
The IMDSI02 module consumes a maximum of 3.6 W of power, making it energy-efficient. -
What is the operating temperature range of the IMDSI02?
The IMDSI02 operates within a temperature range of -20°C to 60°C, which allows it to function in a variety of industrial environments. -
What is the weight of the IMDSI02 module?
The IMDSI02 weighs only 0.454 kg, making it easy to handle and install in various settings. -
Does the IMDSI02 module provide overload protection?
Yes, each output channel in the IMDSI02 module has overload protection, ensuring safe operation even under heavy load conditions. -
What are the diagnostic features of the IMDSI02?
The module has LED indicators to show the status of power, communication, and operational status, enabling quick diagnostics. -
How is the IMDSI02 mounted?
The IMDSI02 can be mounted on a DIN rail or directly on a panel, providing flexibility during installation. -
Can the IMDSI02 be used in hazardous environments?
Yes, the IMDSI02 is suitable for use in harsh environments, including industries like oil & gas and chemical processing, where reliable output control is critical.
Related Models
| Model Name | Description | Key Features |
|---|---|---|
| ABB IMDSO03 | Digital Output Module | 16 digital output channels, suitable for various industries |
| ABB IMDSO04 | Advanced Digital Output Module | Higher channel capacity and more diagnostic features |
| ABB IMDSO02 | Digital Output Module with fewer channels | A compact version for smaller systems |
| ABB IMDIO01 | Digital Input/Output Module | Combines both input and output control in a single module |
| ABB IMDSI03 | Slave module with extended diagnostic and communication features | Enhanced diagnostics for improved system maintenance |
| ABB IMDSI04 | Digital Output Slave Module with extended environmental range | Suitable for extreme operating environments |
| ABB IMDSI01 | Digital Input Slave Module | For managing digital input signals in industrial systems |
| ABB IMDCO01 | Communication Module for connecting with other system components | Facilitates communication between various modules |
