Product Introduction

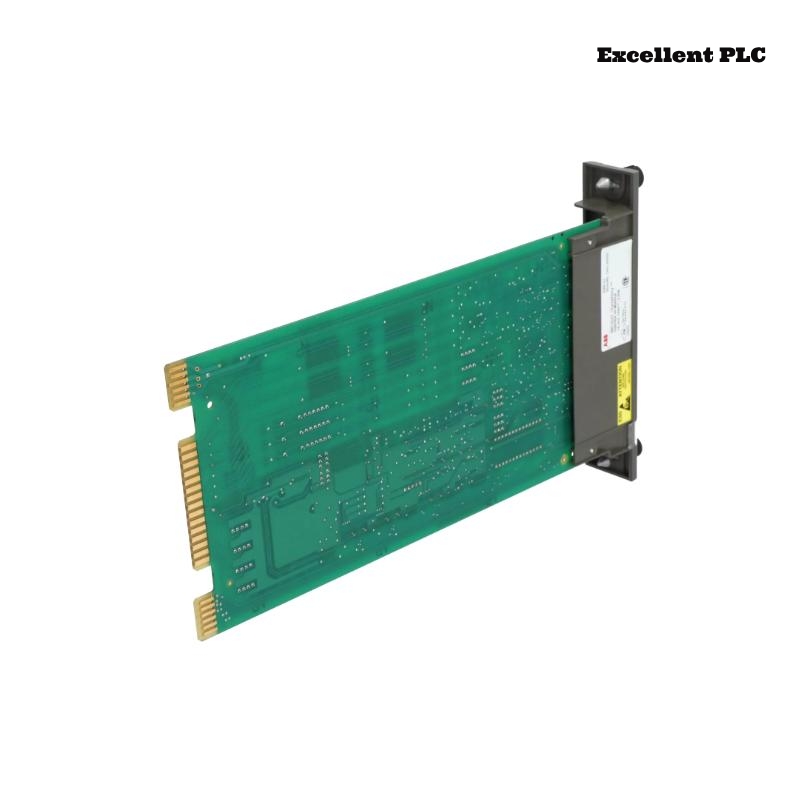

The ABB Bailey IMCIS22 Control I/O Slave Module is an integral component of the Symphony Enterprise Management and Control System, specifically designed for Harmony rack configurations. This module facilitates the integration of process field signals into the system for comprehensive processing and monitoring. It is engineered to handle four analog and three digital inputs from field devices, providing precise data acquisition. Additionally, the IMCIS22 offers four digital and two analog outputs, enabling effective process control. Its robust design ensures reliable performance in various industrial automation applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | IMCIS22 |
| Type | Control I/O Slave Module |
| Analog Inputs | 4 channels |
| Digital Inputs | 3 channels |
| Analog Outputs | 2 channels (4-20 mA or 1-5 VDC) |
| Digital Outputs | 4 channels |
| Analog Input Impedance | 250 Ω (current input) |
| Analog Output Load | 600 Ω/600 mH (maximum) for current; >1 kΩ for voltage |
| D/A Resolution | 10 bits for analog outputs |
| Power Requirements | 5 VDC (±5%), +15 VDC (-2.5%, +5%), -15 VDC (-5%, +2.5%), +24 VDC (±10%) |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 271.78 × 358.14 × 73.66 mm |
| Weight | 0.2 kg |
| Compliance | WEEE Category 5 (Small Equipment with no external dimension more than 50 cm) |
Applications
The IMCIS22 module is versatile and suitable for various industrial applications, including:
- Process Automation: Integrating and controlling analog and digital signals in manufacturing processes.
- Power Generation: Monitoring and controlling parameters in power plants to ensure efficient operations.
- Oil and Gas: Managing field signals from drilling and refining operations for optimal performance.
- Chemical Processing: Ensuring precise control of chemical reactions and processes through accurate signal management.
- Water Treatment: Monitoring and controlling water quality parameters in treatment facilities.
Key Advantages
- Comprehensive Signal Handling: Supports multiple analog and digital inputs and outputs, allowing for flexible process control configurations.
- High Reliability: Designed to operate in demanding industrial environments, ensuring consistent performance.
- Compact Design: Facilitates easy installation and integration into existing systems without requiring significant space.
- Compatibility: Seamlessly integrates with other Symphony Plus series modules, enhancing system scalability.
- Advanced Control Capabilities: Enables precise process control through accurate signal processing and output functionalities.
