Product Introduction

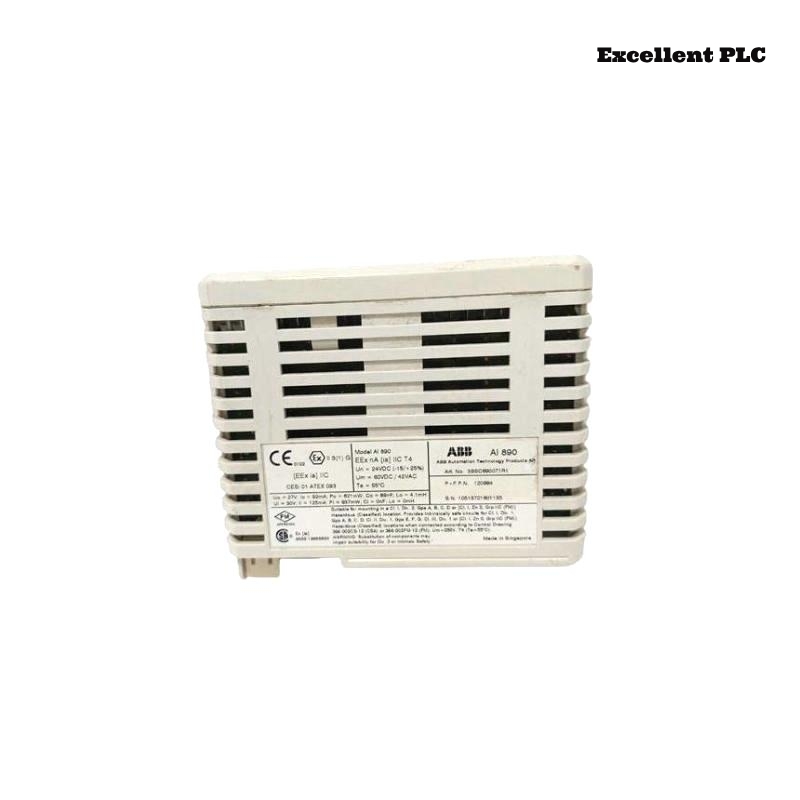

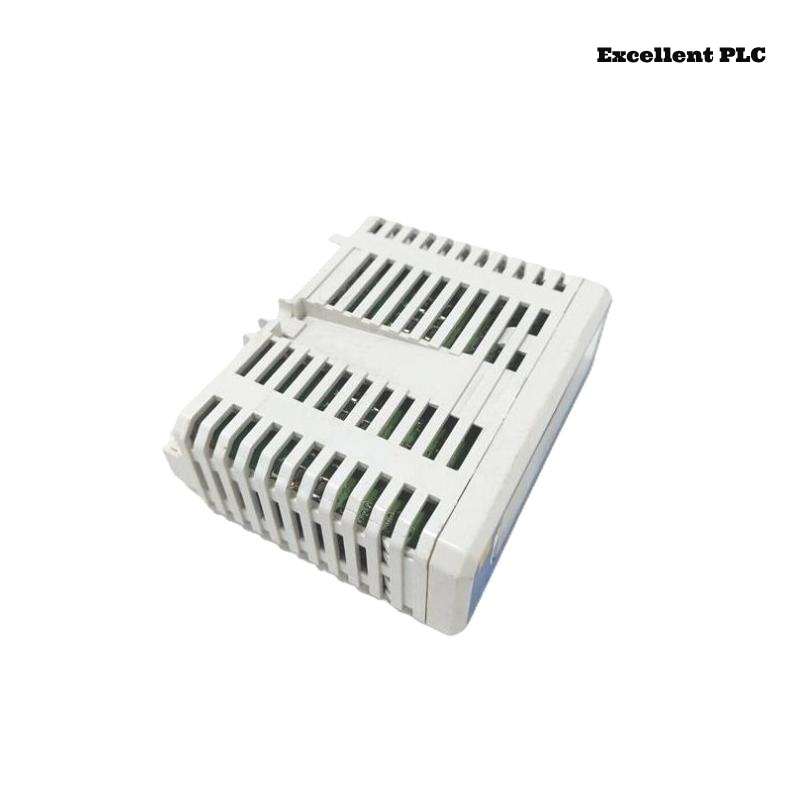

The ABB AI890 3BSC690071R1 Analog Input Module is a highly reliable and efficient component designed for use in ABB’s automation and control systems. This module is integral in monitoring analog signals from various field devices, providing critical data for process control applications. With its 16 analog input channels, it is designed to handle a wide range of input signal types including 0-10V, 4-20mA, and other standard industrial signals.
The AI890 module is built to provide high precision and fast response times, making it suitable for use in demanding industries such as chemical processing, power generation, oil & gas, and manufacturing. The AI890 offers exceptional accuracy and signal integrity, ensuring that your monitoring and control systems operate efficiently and reliably.
This module is part of the ABB S800 I/O series and is compatible with ABB’s distributed control systems (DCS), providing seamless integration for real-time data collection and control. Its rugged construction ensures durability in harsh industrial environments, while its compact size allows for easy installation on a DIN rail, making it a versatile choice for a wide range of applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Name | ABB AI890 3BSC690071R1 Analog Input Module |
| Manufacturer | ABB |
| Product Series | S800 I/O Series |
| Input Channels | 16 |
| Input Signal Types | 0-10V, 4-20mA, 0-20mA, 0-5V, 1-5V |
| Input Resolution | 16-bit ADC |
| Accuracy | ±0.1% of full scale |
| Power Supply | 24V DC, ±20% |
| Current Consumption | 100mA (typical) |
| Input Impedance | 250kΩ (typical) |
| Update Time | 50 ms (max) |
| Temperature Range (Operating) | -40°C to 70°C (-40°F to 158°F) |
| Temperature Range (Storage) | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95%, non-condensing |
| Dimensions (H x W x D) | 45 x 102 x 119 mm |
| Weight | 0.2 kg |
| Environmental Protection | IP20 (protected against solid objects larger than 12mm) |
| Mounting Type | DIN Rail Mount |
| Communication Protocol | ABB S800 I/O Communication Protocol |
Applications
The ABB AI890 3BSC690071R1 Analog Input Module finds applications across various industries where precise data acquisition and reliable process control are critical.
1. Process Control in Chemical Plants
The AI890 module is used to monitor and control key parameters such as temperature, pressure, and flow. Its flexibility in handling multiple input types ensures that it can interface with a wide variety of field sensors, maintaining process stability and improving safety.
2. Power Generation
In power generation, the AI890 module helps to monitor key signals in turbine control, generator monitoring, and power distribution. Its high precision enables efficient energy generation and distribution, ensuring operational safety.
3. Oil and Gas Industry
The module is ideal for oil and gas operations, providing accurate readings for pressure, temperature, and flow in upstream and downstream processes. The AI890 ensures operational efficiency and safety in these critical environments.
4. Manufacturing and Automation
In manufacturing, the AI890 is used to monitor machine performance and product quality. It allows real-time adjustments to manufacturing processes, ensuring consistency and high production standards.
5. Water Treatment
In water treatment facilities, the AI890 module is employed to measure and control parameters like flow rates, chemical concentrations, and water levels. It ensures clean and efficient water distribution and treatment.
Product Advantages
The ABB AI890 3BSC690071R1 Analog Input Module offers numerous advantages, making it a valuable component for any industrial control system:
1. High Accuracy and Resolution
With a 16-bit ADC, the AI890 module ensures that even the smallest variations in the input signal are captured, providing accurate and precise measurements.
2. Versatile Input Options
The module supports a variety of input signal types, including voltage, current, and resistance, offering flexibility for different sensor applications and industrial environments.
3. Wide Temperature Range
The AI890 operates in a wide temperature range from -40°C to 70°C, making it suitable for use in harsh industrial environments.
4. Fast Response Time
With an update time of 50ms, the AI890 ensures real-time processing of analog signals, making it ideal for applications that require quick adjustments.
5. Easy Integration with ABB Systems
The AI890 module integrates seamlessly into ABB’s S800 I/O systems, enabling easy system expansion without the need for significant changes to the existing control system architecture.
6. Rugged Construction
The module is built to withstand the demanding conditions found in industrial environments, with IP20 protection to guard against dust and external elements, ensuring long-lasting performance.
7. Compact and Space-Saving Design
The DIN rail mountable module has a compact design, allowing it to fit into smaller spaces and making installation straightforward.
Latest Product News Titles
- ABB Unveils New AI890 Analog Input Module for Precise Process Control
- AI890 Module Revolutionizes Industrial Monitoring with Faster Signal Processing
- ABB’s AI890 Module Provides Exceptional Accuracy in Power Generation Applications
- ABB Introduces High-Performance Analog Input Module for Manufacturing Systems
- AI890 Analog Input Module Enhances Data Collection in Chemical and Oil Industries
Frequently Asked Questions (FAQ)
1. What types of analog signals can the ABB AI890 module handle?
The AI890 module supports voltage, current, and resistance input signals, including 0-10V, 4-20mA, 0-5V, and 1-5V.
2. How many input channels does the AI890 module have?
The AI890 module provides 16 analog input channels, enabling the monitoring of multiple signals simultaneously.
3. What is the accuracy of the AI890 module?
The module offers an accuracy of ±0.1% of full scale, ensuring precise data collection and processing.
4. Can the AI890 be used in high-temperature environments?
Yes, the AI890 operates in a wide temperature range from -40°C to 70°C, making it suitable for extreme industrial conditions.
5. What is the power supply requirement for the AI890 module?
The AI890 requires a 24V DC power supply, with a tolerance of ±20%.
6. What is the update time for the AI890 module?
The AI890 has a fast update time of 50ms, ensuring quick response times for real-time signal processing.
7. How does the AI890 integrate with other ABB systems?
The AI890 seamlessly integrates with the ABB S800 I/O system, providing easy communication and expansion within existing control systems.
8. What is the weight of the AI890 module?
The AI890 weighs 0.2 kg, making it lightweight and easy to install.
9. How is the AI890 module mounted?
The AI890 module is designed for DIN rail mounting, making installation quick and secure.
10. What type of environmental protection does the AI890 have?
The AI890 has IP20 protection, safeguarding it against dust and solid objects larger than 12mm.
