Product Introduction

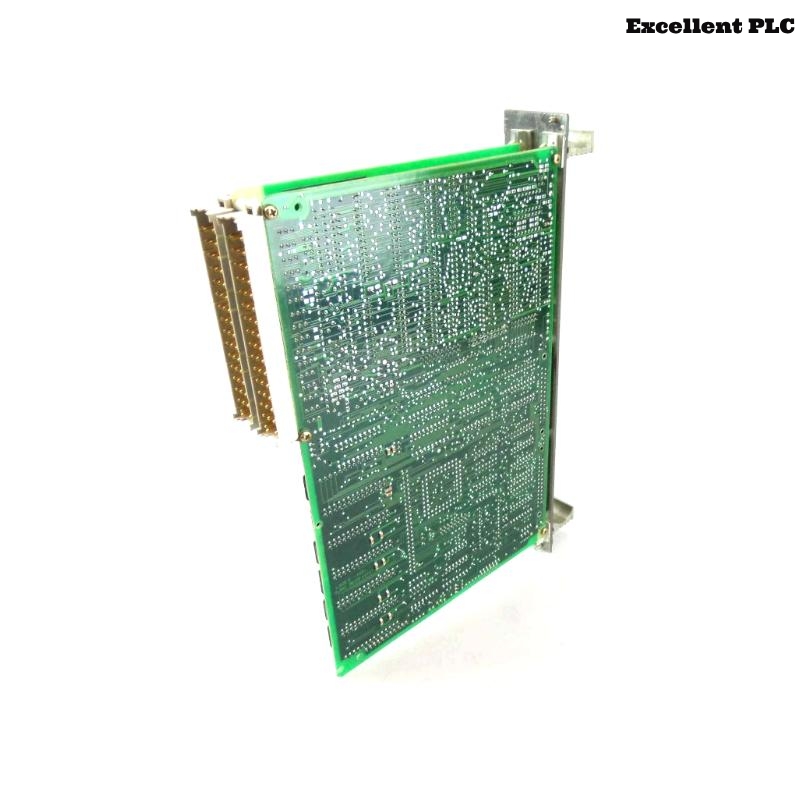

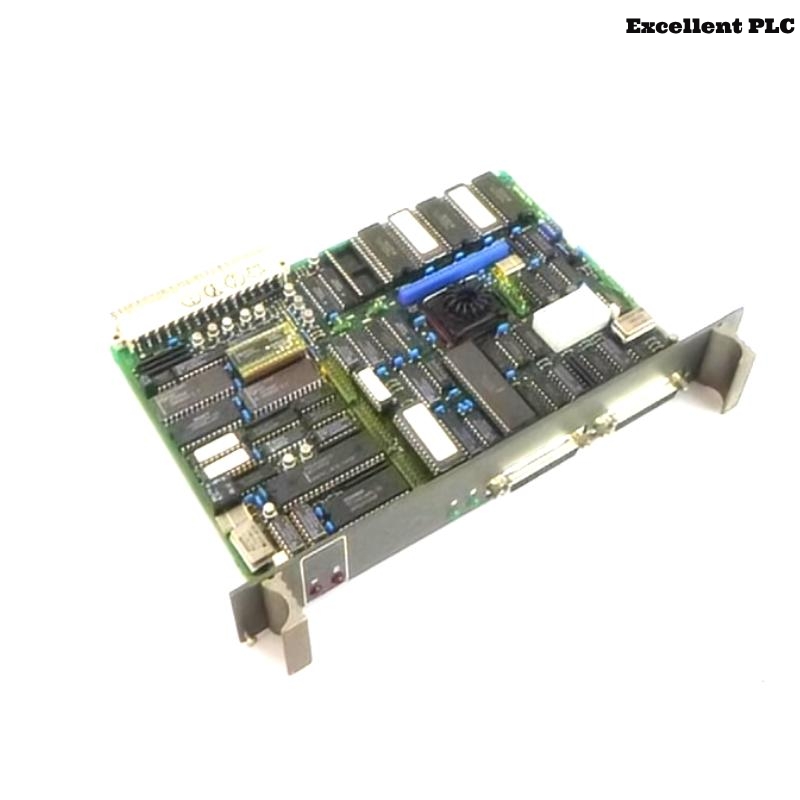

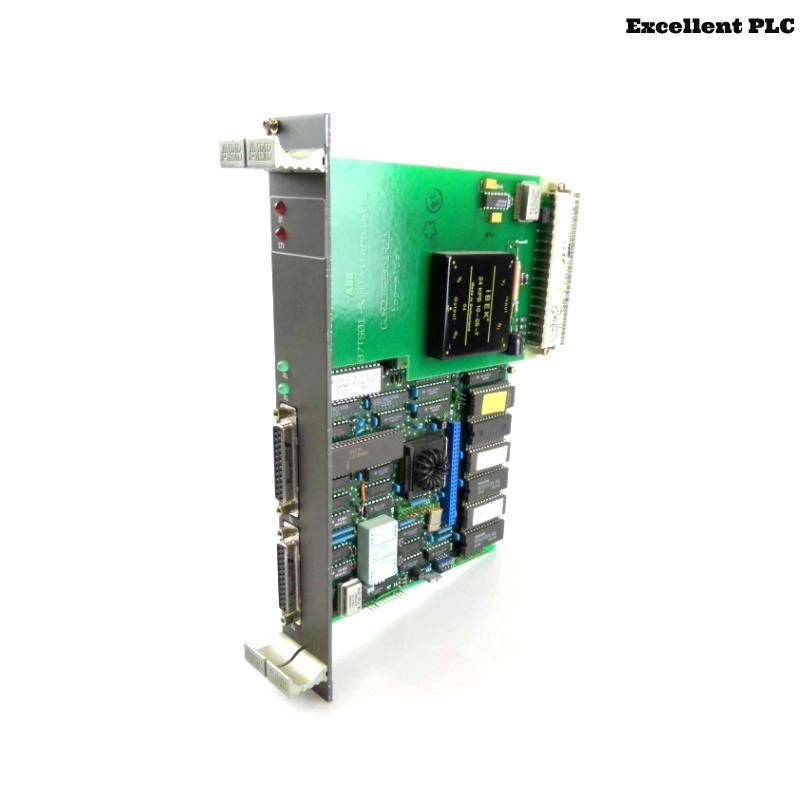

The ABB 87TS01E GJR2368900R2011 Coupler Module is a robust and reliable component designed for industrial automation systems. It serves as a communication link between different components within a control system, facilitating efficient and reliable data transfer.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | 87TS01E |
| Part Number | GJR2368900R2011 |
| Product Type | Coupler Module |
| Function | Communication link between control system components |
| Operating Voltage | DC 24V |
| Communication Protocol | MODBUS RTU/TCP |
| Data Rate | Up to 1 Mbps |
| Connection Ports | 2x RS485 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 105 x 110 x 40 mm |
| Weight | 0.15 kg |
| Mounting Type | DIN Rail Mount |
| Environmental Protection | IP20 |
Applications
The ABB 87TS01E Coupler Module is suitable for various industrial applications, including:
-
Industrial Control Systems: Facilitates communication between different components within control systems.
-
Process Automation: Enhances data transfer efficiency in automated processes.
-
Manufacturing Plants: Ensures reliable communication in complex manufacturing setups.
-
Energy Sector: Supports communication in energy management systems.
-
Water Treatment Facilities: Aids in the integration of control components in water treatment processes.
Advantages
-
Enhanced Communication: Improves the efficiency and reliability of data transfer between control system components.
-
Durability: Built to withstand challenging industrial environments, ensuring long-term reliability.
-
Easy Integration: Can be easily integrated into existing systems, reducing installation time and effort.
-
Compact Design: Saves space within control panels.
-
Wide Operating Temperature Range: Suitable for use in extreme industrial conditions.
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB 87TS01E Coupler Module?
-
It serves as a communication link between different components within a control system.
-
-
What communication protocols does it support?
-
It supports MODBUS RTU and TCP protocols.
-
-
What is the operating voltage?
-
The module operates at DC 24V.
-
-
What are the dimensions of the module?
-
The dimensions are 105 mm x 110 mm x 40 mm.
-
-
What is the weight of the module?
-
The module weighs 0.15 kg.
-
-
What is the operating temperature range?
-
The module operates within a temperature range of -20°C to +60°C.
-
-
What type of mounting does it support?
-
It supports DIN Rail mounting.
-
-
Is the module suitable for harsh industrial environments?
-
Yes, it is designed to withstand challenging industrial conditions.
-
-
Can it be integrated into existing control systems?
-
Yes, it can be easily integrated into existing systems.
-
-
What is the environmental protection rating?
-
The module has an IP20 environmental protection rating.
-
Related Models (Same Series or Functionality)
| Model Number | Product Name | Description |
|---|---|---|
| 87TS01E | Coupler Module | Standard coupler module for communication link |
| 87TS01I-E | Coupler Module | Enhanced version with improved features |
| 87TS01G | Coupler Module | Variant with specific industrial application focus |
| 87TS01H | Coupler Module | High-performance version for demanding environments |
| 87TS01J | Coupler Module | Compact design for space-constrained installations |
| 87TS01K | Coupler Module | Advanced model with extended communication capabilities |
