Product Introduction

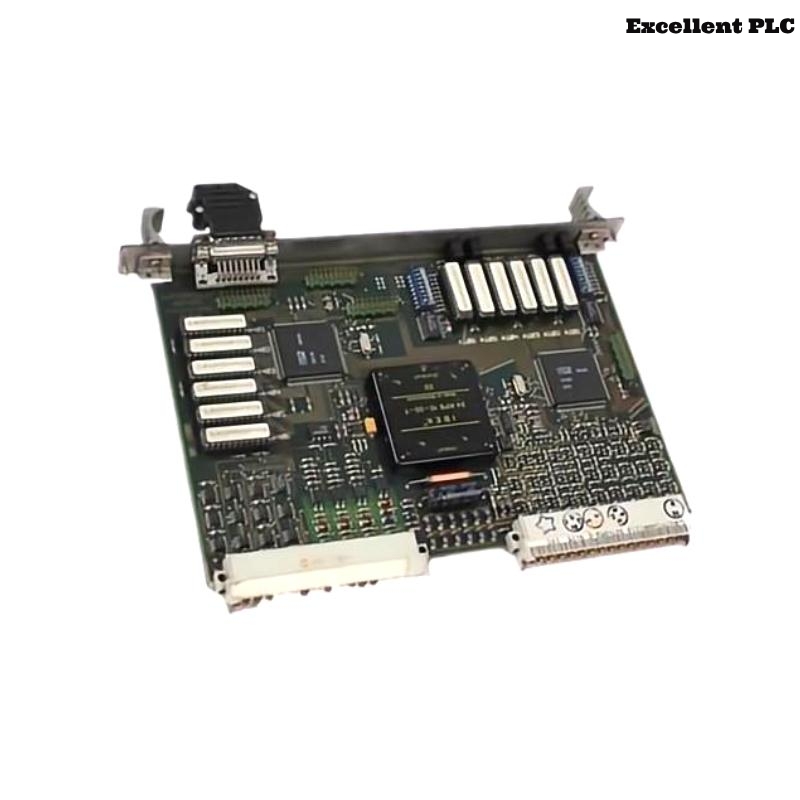

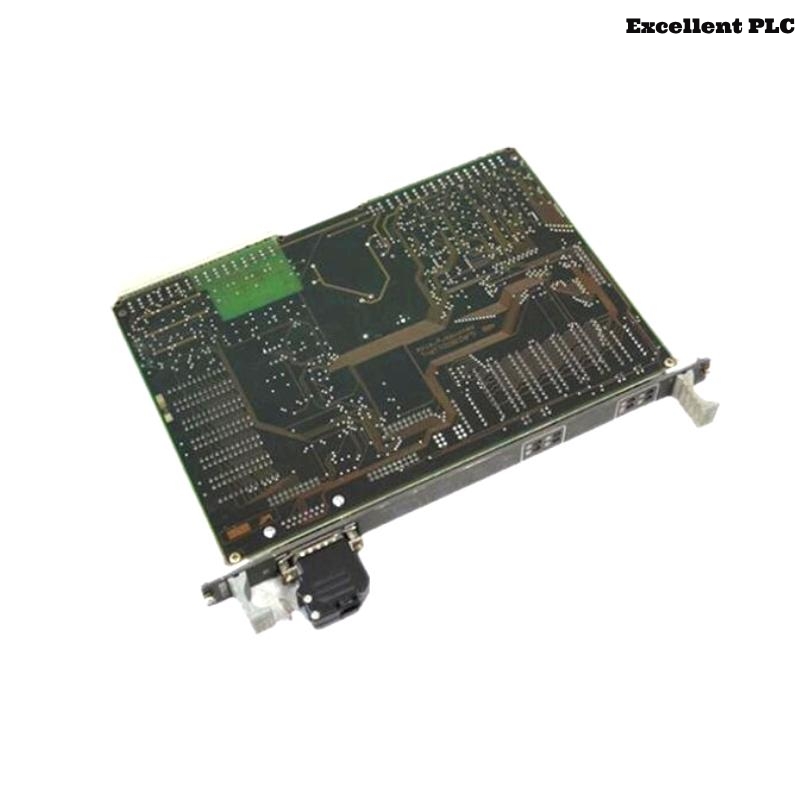

The ABB 83SR51 GJR2396200R1210 is a versatile control module from ABB’s Procontrol P14 series. Designed for both binary and analog control functions, it features two channels, each comprising 4 digital inputs (DI), 1 digital output (DO), 2 analog inputs (AI), and 1 analog output (AO). This configuration makes it suitable for a wide range of industrial automation applications, including the control of electrohydraulic and electropneumatic actuators.
The module operates independently, processing information like a multiprocessor system, which eliminates the need for a central processing unit. This decentralized approach enhances system reliability and simplifies the distribution of control tasks across various components.
Product Specifications
| Parameter | Specification |
| Model Number | 83SR51 GJR2396200R1210 |
| Manufacturer | ABB |
| Series | Procontrol P14 |
| Functionality | Binary and Analog Control |
| Control Channels | 2 |
| Per Channel Configuration | 4 DI, 1 DO, 2 AI, 1 AO |
| Technical Channel Type | AX/DX |
| Dimensions (H x W x D) | 261 mm x 20 mm x 198 mm |
| Weight | 0.55 kg |
| RoHS Compliance | Yes, EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension > 50 cm) |
| Country of Origin | Sweden |
Product Applications
The ABB 83SR51 control module is utilized in various industrial sectors for its robust control capabilities. Typical applications include:
-
Power Generation Facilities: Managing control systems in power plants.
-
Oil and Gas Industry: Controlling processes in refineries and offshore platforms.
-
Chemical Processing Plants: Regulating complex chemical processes.
-
Pulp and Paper Industry: Automating control systems in paper mills.
-
Automotive Manufacturing: Overseeing assembly line automation.
-
Water Treatment Plants: Monitoring and controlling water purification processes.
Product Advantages
-
Integrated Control Functions: Combines binary and analog control in a single module, reducing the need for multiple components.
-
Decentralized Processing: Operates independently, enhancing system reliability and simplifying control task distribution.
-
Compact Design: Small footprint allows for easy integration into existing systems without requiring significant space.
-
Energy Efficiency: Low power consumption contributes to overall system efficiency.
-
High Compatibility: Easily integrates with various actuators and control systems.
-
Compliance with Standards: Meets RoHS and WEEE directives, ensuring environmental responsibility.
Frequently Asked Questions (FAQs)
1. What is the primary function of the 83SR51 module?
It serves as a control module for both binary and analog signals, managing various industrial automation tasks.
2. How many control channels does the module have?
The module features two control channels, each with 4 digital inputs, 1 digital output, 2 analog inputs, and 1 analog output.
3. Is the module compatible with other ABB systems?
Yes, it is designed to integrate seamlessly with ABB’s Procontrol P14 series and other compatible systems.
4. What are the dimensions of the module?
The module measures 261 mm in height, 20 mm in width, and 198 mm in depth.
5. What is the weight of the module?
It weighs 0.55 kg.
6. Does the module comply with environmental standards?
Yes, it complies with RoHS Directive 2011/65/EU and falls under WEEE Category 5.
7. Can the module operate independently?
Yes, it processes information independently, functioning like a multiprocessor system.
8. What types of actuators can it control?
It is suitable for controlling electrohydraulic and electropneumatic actuators.
9. Where is the module manufactured?
The module is manufactured in Sweden.
10. Is the module energy-efficient?
Yes, it is designed for low power consumption, contributing to overall system efficiency.
