Product Introduction

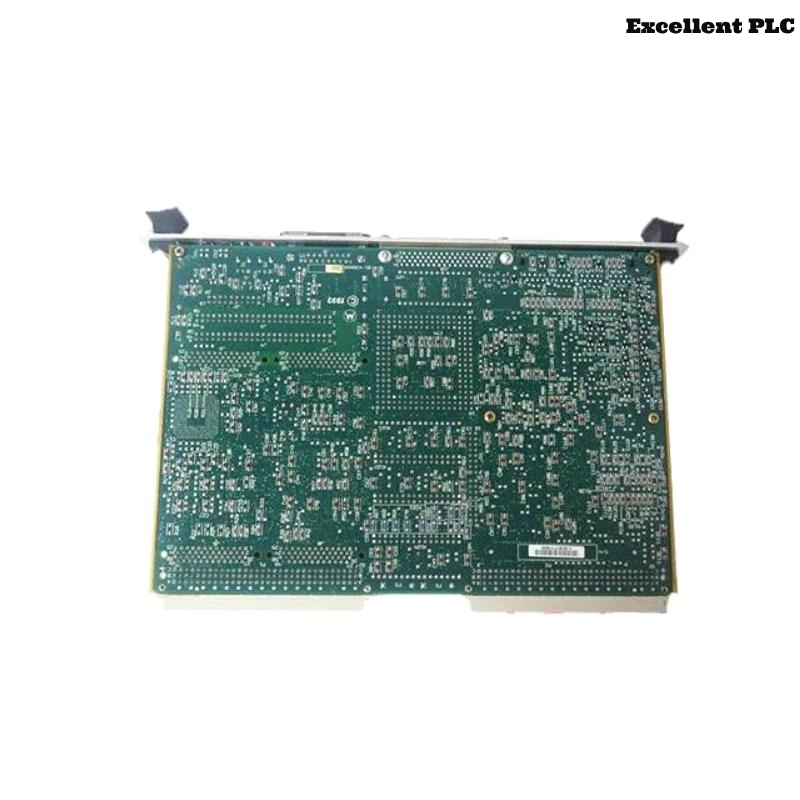

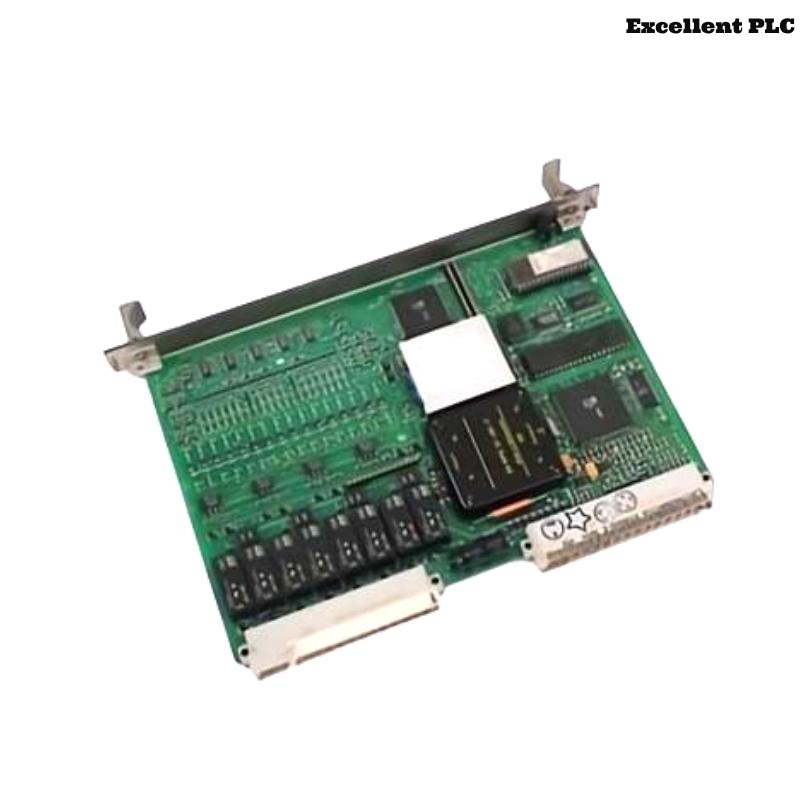

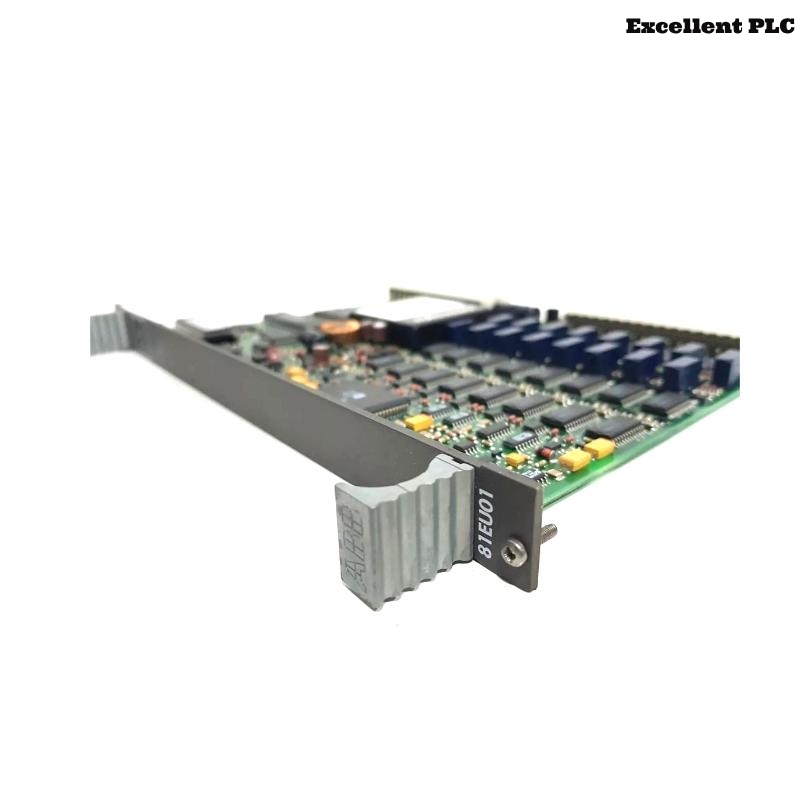

The ABB 81EU01E-E GJR231500R1210 Universal Input Module is a robust and versatile industrial component designed for seamless integration in automation and control systems. Part of ABB’s leading automation solutions, this module provides high-performance data acquisition and control functions. The module supports a wide range of input signals, making it highly adaptable to different process control applications. Whether for industrial plants, manufacturing facilities, or energy systems, the 81EU01E-E module is engineered to deliver accurate measurements and reliable performance across diverse environments.
The primary function of the 81EU01E-E module is to convert various sensor inputs (such as analog, digital, and temperature signals) into a format that can be processed by the system’s central control unit. It is designed to be flexible and scalable, which allows it to meet the specific needs of different industrial systems. With its precision and ease of integration, the 81EU01E-E Universal Input Module is a preferred choice for companies seeking high-quality control and automation solutions.
Product Specifications
Below is a detailed table of the key specifications for the ABB 81EU01E-E GJR231500R1210 Universal Input Module:
| Parameter | Details |
|---|---|
| Model Number | ABB 81EU01E-E GJR231500R1210 |
| Module Type | Universal Input Module |
| Dimensions (L x W x H) | 140 x 120 x 35 mm |
| Weight | 0.85 kg |
| Input Type | Analog, Digital, RTD, Thermocouple |
| Input Voltage | 24 V DC |
| Input Range | ±10 V, ±20 mA, 0-20 mA, 4-20 mA |
| Power Consumption | 8 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Signal Processing | Filtering, Scaling, and Conversion |
| Mounting Type | DIN Rail Mounting |
| Compliance | CE, UL Certified |
| Input Channels | 8 Channels |
| Communication | Modbus RTU, Profibus, EtherNet/IP |
Product Applications
The ABB 81EU01E-E GJR231500R1210 Universal Input Module is ideal for use in a wide range of industrial applications, including but not limited to:
-
Manufacturing Plants: To integrate various process variables like temperature, pressure, and flow from different sensors into the central control system for efficient operation and monitoring.
-
Energy and Utilities: For monitoring and controlling key parameters in power plants, substations, and other energy production facilities.
-
Automated Control Systems: Used in industries requiring precise signal conversion, such as oil & gas, pharmaceutical manufacturing, and chemical production.
-
Building Automation: Helps in collecting data from various systems like HVAC, lighting, and security systems for centralized monitoring and control.
-
Transportation Systems: Integration in railway, automotive, and aviation systems for reliable data acquisition from sensors monitoring various system components.
-
Water Treatment Plants: Essential for capturing and processing input from sensors that monitor water quality, flow, and pressure, ensuring smooth plant operations.
Product Advantages
The ABB 81EU01E-E GJR231500R1210 Universal Input Module offers several key advantages that make it suitable for critical applications:
-
Universal Compatibility: This module supports a wide range of input types, including analog, digital, RTD, and thermocouples, making it highly flexible for various control systems.
-
Reliable Performance: Engineered for high reliability, it offers stable performance in harsh environments, ensuring continuous operation without failure.
-
High Accuracy: With its precision signal conversion and processing capabilities, the module ensures that all sensor data is accurately transferred and processed.
-
Compact Design: The module’s compact form factor allows for easy installation in tight spaces, providing flexibility for system design and setup.
-
Energy Efficient: With low power consumption (8 W), the 81EU01E-E module helps reduce the overall energy costs in a system while maintaining peak performance.
-
Ease of Integration: The module supports various communication protocols (such as Modbus RTU, Profibus, and EtherNet/IP), making it easy to integrate into different automation systems.
-
Durability: Designed for harsh environments, the module can operate in a wide temperature range and resist high humidity, making it suitable for diverse industrial settings.
-
Versatility in Applications: From industrial manufacturing to energy, water treatment, and building automation, the module can be used in a wide range of applications.
-
Cost-Effective: Offering high functionality at an affordable price point, the module delivers excellent value for its price.
-
Industry Certification: Compliant with CE and UL safety standards, ensuring that the module meets rigorous international safety requirements.
FAQ (Frequently Asked Questions)
-
What types of input signals can the ABB 81EU01E-E module process?
-
The module supports analog, digital, RTD, and thermocouple inputs, providing versatile signal processing capabilities.
-
-
What is the operating temperature range of this module?
-
The module can operate between -20°C and +60°C, making it suitable for a variety of industrial environments.
-
-
Can the ABB 81EU01E-E be used in hazardous environments?
-
While the module is built to withstand harsh conditions, it is important to verify specific environmental and safety standards for hazardous environments.
-
-
What communication protocols are supported by this module?
-
The module supports Modbus RTU, Profibus, and EtherNet/IP communication protocols for easy integration with various control systems.
-
-
What is the power consumption of the ABB 81EU01E-E?
-
The module consumes only 8 W, making it energy-efficient for industrial automation setups.
-
-
How many input channels does the module have?
-
The ABB 81EU01E-E module provides 8 input channels for connecting multiple sensors.
-
-
What is the weight of the ABB 81EU01E-E module?
-
The module weighs 0.85 kg, making it lightweight and easy to install.
-
-
What are the dimensions of the module?
-
The module measures 140 x 120 x 35 mm, ensuring a compact footprint for installation.
-
-
What mounting type is supported by the module?
-
The ABB 81EU01E-E module can be mounted on a DIN rail, which is a standard mounting method for industrial control equipment.
-
-
What is the warranty period for this module?
-
We provide one year warranty.
Recommended Related Models
Here are six related models from the ABB series that offer similar functionality or can complement the ABB 81EU01E-E Universal Input Module:
| Model | Description | Key Feature |
|---|---|---|
| ABB 81EU02E-E | Analog Input Module | Supports more extensive analog inputs |
| ABB 81EU03E-E | High-density input module | Increased input channels for larger systems |
| ABB 81EU04E-E | Digital Input Module | Supports more digital signals |
| ABB 81EU05E-E | Temperature Input Module | Specialized for high-precision temperature measurements |
| ABB 81EU06E-E | Multi-channel input module | Supports up to 16 channels for larger installations |
| ABB 81EU07E-E | Low-voltage input module | Designed for low-voltage input systems |
