Product Introduction

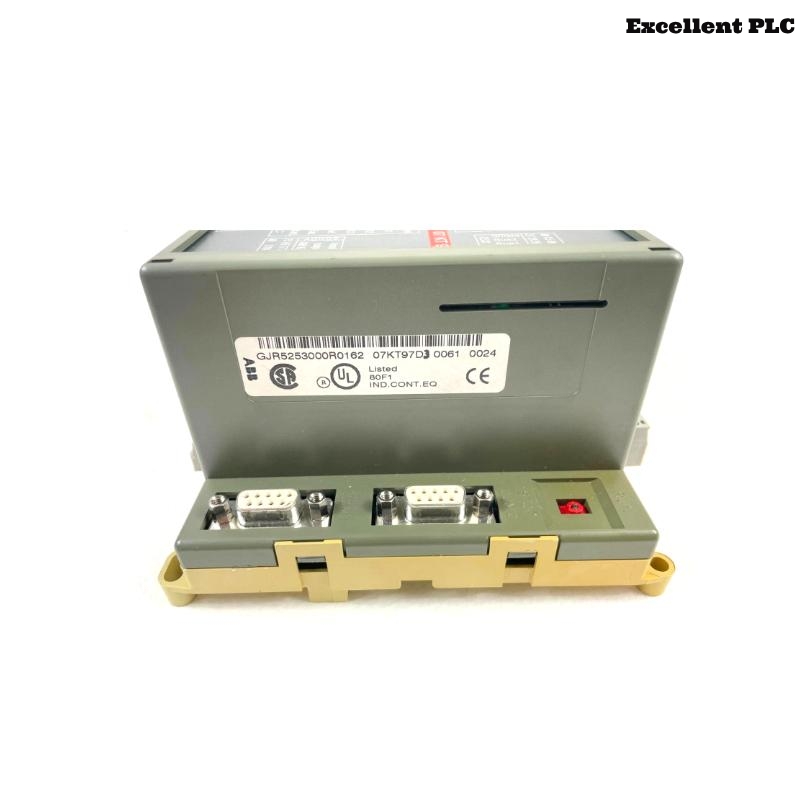

The ABB 07KT97D GJR5253000R0272 Controller Module is a high-performance central processing unit (CPU) within ABB’s Advant Controller 31 series. Designed for demanding industrial automation applications, this module offers rapid processing capabilities, extensive I/O options, and seamless integration with various communication protocols. Its robust construction ensures reliable operation in harsh industrial environments, making it an ideal choice for critical control systems.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 07KT97D |
| Part Number | GJR5253000R0272 |
| Product Type | Central Processing Unit (CPU) |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A |
| Digital Inputs | 24 (DC 24V) |
| Digital Outputs | 16 (DC 24V) |
| Analog Inputs | 8 channels (0–5V, ±5V, 0–10V, ±10V, 0–20mA, 4–20mA, PT100) |
| Analog Outputs | 4 channels (±10V, 0–20mA) |
| Maximum Digital I/Os | 1024 |
| Maximum Analog I/Os | 232 AI / 228 AO |
| Memory – User Program | 480 kB (Flash EPROM, non-volatile RAM, SMC) |
| Memory – User Data | 256 kB (Flash EPROM) |
| Processing Speed | 0.3 ms per 1000 instructions (65% Logic, 35% Word) |
| Hardware Counters | 2 (50 kHz max input frequency) |
| Serial Ports | 2 × RS232 (Modbus Master/Slave, ASCII) |
| Fieldbus Interface | CS31-Bus, Ethernet TCP/IP, Profibus DP |
| Real-Time Clock | Yes |
| Programming Software | AC1131 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +75°C |
| Dimensions (H × W × D) | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
| Mounting Type | DIN rail |
| Certifications | CE, UL, CSA, ABS |
| Country of Origin | Switzerland |
Product Applications
The ABB 07KT97D Controller Module is engineered for a wide range of industrial automation applications, including:
-
Manufacturing Automation: Controls assembly lines, robotic systems, and machinery operations.
-
Process Industries: Manages processes in chemical, petrochemical, and pharmaceutical plants.
-
Energy Sector: Supervises operations in power generation and distribution systems.
-
Water and Wastewater Treatment: Automates treatment processes and monitors system performance.
-
Building Automation: Integrates HVAC, lighting, and security systems for efficient building management.
-
Transportation Systems: Controls signaling and operations in railway and metro systems.
Product Advantages
-
High Performance: Rapid processing capabilities ensure real-time control and responsiveness.
-
Scalability: Modular design allows for easy expansion to accommodate system growth.
-
Versatile I/O Options: Supports a wide range of digital and analog inputs/outputs for diverse applications.
-
Robust Communication: Multiple communication interfaces facilitate seamless integration with other systems.
-
Reliable Operation: Designed to operate in harsh industrial environments with high reliability.
-
Ease of Programming: Compatible with AC1131 software for straightforward programming and configuration.
-
Compact Design: Space-saving form factor enables installation in confined spaces.
-
Comprehensive Diagnostics: Built-in diagnostics aid in quick troubleshooting and maintenance.
-
Energy Efficient: Low power consumption contributes to overall system efficiency.
-
Global Compliance: Meets international standards and certifications for worldwide applicability.
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB 07KT97D Controller Module?
It serves as the central processing unit in automation systems, executing control programs and managing I/O operations. -
Which programming software is compatible with the 07KT97D?
The module is programmed using ABB’s AC1131 software. -
Can the 07KT97D handle both digital and analog signals?
Yes, it supports 24 digital inputs, 16 digital outputs, 8 analog inputs, and 4 analog outputs. -
What communication protocols does the module support?
It supports CS31-Bus, Ethernet TCP/IP, and Profibus DP for flexible integration. -
Is the 07KT97D suitable for use in harsh environments?
Yes, it is designed to operate reliably in industrial settings with temperatures ranging from 0°C to +55°C. -
How is the module mounted in a control panel?
It is designed for DIN rail mounting, facilitating easy installation. -
What is the processing speed of the 07KT97D?
It processes 1000 instructions in approximately 0.3 milliseconds. -
Does the module include a real-time clock?
Yes, it features an integrated real-time clock for time-dependent operations. -
What is the memory capacity for user programs and data?
It offers 480 kB for user programs and 256 kB for user data storage. -
Where is the ABB 07KT97D manufactured?
The module is manufactured in Switzerland, ensuring high-quality standards.
Related Models (Same Series or Compatible)
| Model Number | Description |
|---|---|
| 07KT97D GJR5253000R0162 | Controller module with similar specs, CS31 bus support |
| 07KT97D GJR5253000R0270 | Ethernet-enabled CPU module in the same series |
| 07KT97C GJR5253000R0161 | Slightly lower-spec CPU unit with fewer I/O capabilities |
| 07KT98 GJR5253100R0160 | Enhanced version with advanced memory and communication |
| 07DC92 GJR5252200R0101 | Digital input module compatible with 07KT97D |
| 07AC91 GJR5252300R0101 | Power supply module used in same control system |
Popular ABB Models (Same Brand)
| Model Number | Description |
|---|---|
| PM866K01 | AC 800M CPU module for high-performance control systems |
| CI854AK01 | Communication interface for PROFIBUS DP connectivity |
| AI810 | Analog input module, 8 channels, used in process automation |
| DO810 | Digital output module with 16 channels, widely used in DCS |
| PM864AK01 | Mid-range CPU for AC800M controllers with Ethernet support |
| TU810V1 | Extended termination unit for I/O modules |
