Product Overview

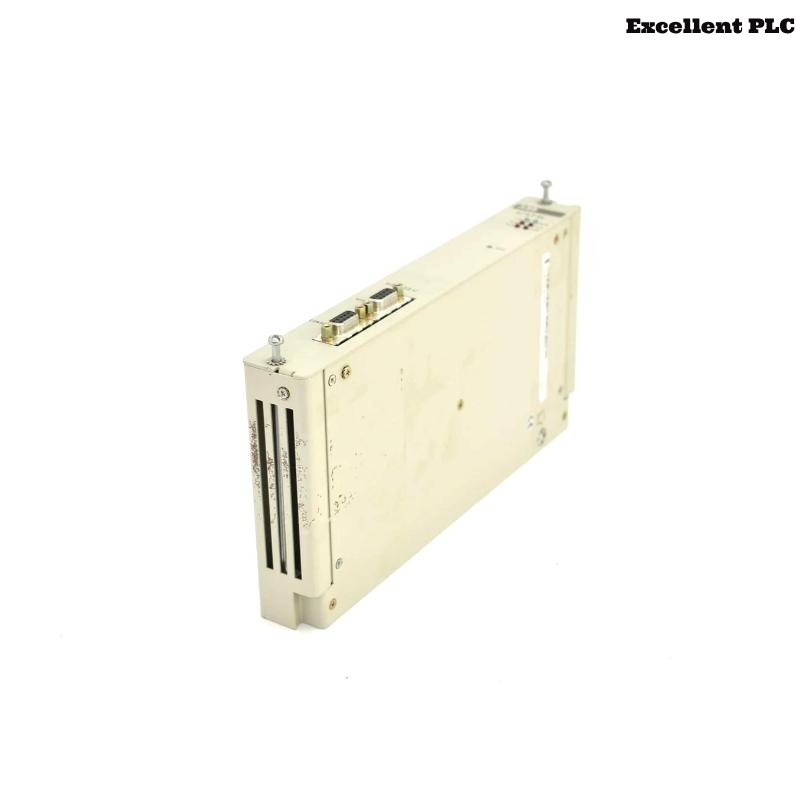

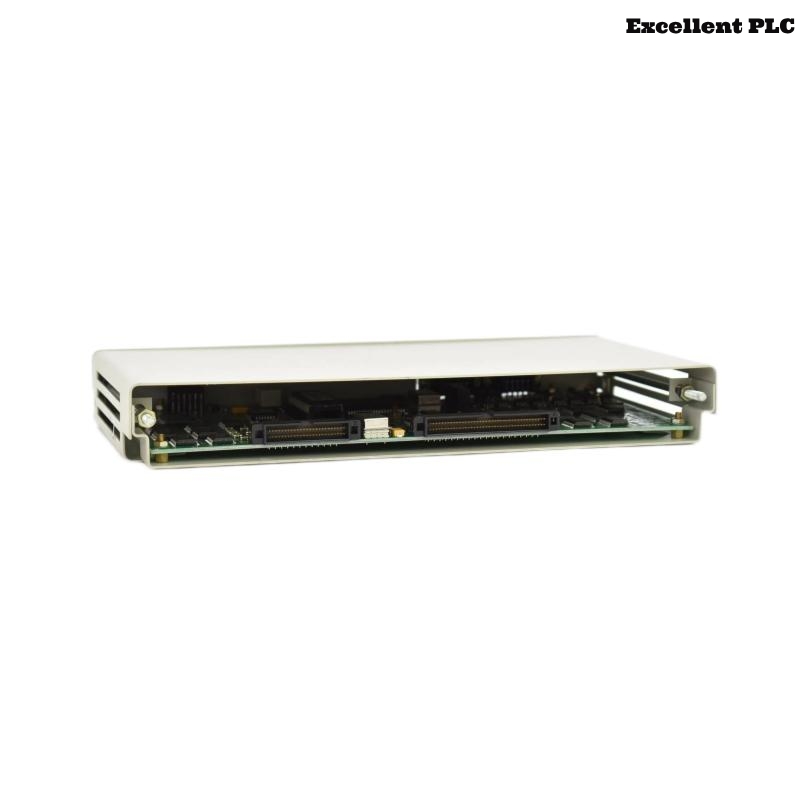

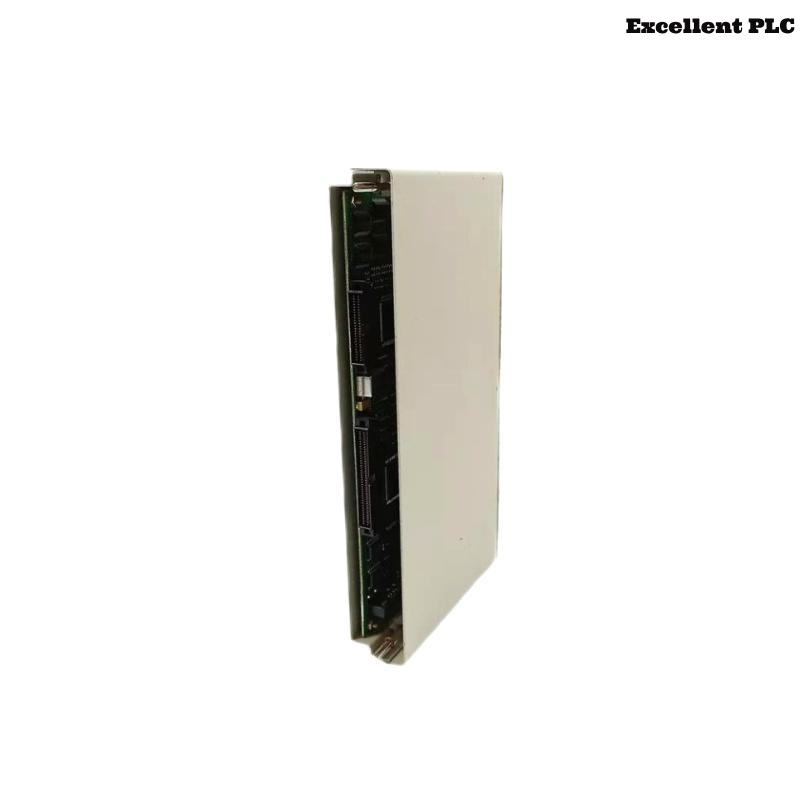

The ABB 07KP64 GJR5240600R0101 Communication Processor Module is a critical component in ABB’s Advant Controller 31 automation platform. It is designed to handle high-speed data exchange between the controller system and peripheral devices or upper-level systems. Functioning as a bridge between field instrumentation and central processing units, the 07KP64 ensures reliable, consistent communication essential for industrial control and monitoring.
This module supports multiple communication protocols, making it versatile for various applications ranging from process industries to infrastructure systems. Its robust architecture is built for harsh industrial environments, ensuring long-term stability and minimal communication interruptions.
Whether deployed in complex process plants or distributed control systems, the 07KP64 provides essential communication capabilities, helping engineers and operators maintain seamless data flow and integration with supervisory systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Communication Processor Module |
| Model Number | 07KP64 |
| Ordering Code | GJR5240600R0101 |
| Manufacturer | ABB |
| System Compatibility | Advant Controller 31 |
| Communication Ports | RS232 / RS485 / 20 mA Current Loop (selectable) |
| Supported Protocols | MODBUS, Master/Slave, ABB proprietary protocols |
| Baud Rate | Selectable up to 38.4 kbps |
| Data Format | 8 data bits, 1 stop bit, parity configurable |
| Interface Isolation | Galvanic isolation between communication and logic bus |
| Power Supply | 5 VDC (via backplane) |
| Power Consumption | Approx. 2.5 W |
| Diagnostics | Status LEDs for RX/TX, power, error |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95%, non-condensing |
| Mounting Type | DIN Rail / Rack Mount |
| Dimensions (W x H x D) | 120 × 80× 60 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, CSA, RoHS |
Applications
The ABB 07KP64 module plays a vital role in a wide variety of industrial automation environments:
-
Process Automation Plants
Used for connecting control logic with supervisory systems and human-machine interfaces (HMIs). -
Energy and Utilities Sector
Facilitates communication between remote substations and central SCADA systems. -
Oil & Gas Facilities
Enables field device integration and ensures protocol translation across upstream and downstream networks. -
Pharmaceutical Production
Supports automated data logging, traceability, and batch control through seamless controller connections. -
Water and Wastewater Treatment
Maintains reliable communication with sensor arrays, pumps, and remote monitoring systems. -
Factory Automation
Interfaces with distributed control units, PLCs, and intelligent sensors for real-time control feedback.
Key Advantages
-
Multi-Protocol Support
Offers compatibility with industry-standard protocols including MODBUS, making integration effortless. -
Reliable Signal Transmission
Ensures stable and interference-resistant communication even in high-EMI environments. -
Compact and Modular
Small form factor allows for easy installation in confined control panels or enclosures. -
Built-In Diagnostics
LED indicators help identify communication errors and ensure quick troubleshooting. -
Galvanic Isolation
Enhances system safety by isolating communication interfaces from logic circuitry. -
Integrated with Advant Controller 31
Natively designed for seamless performance within ABB’s well-established automation platform. -
Long-Term Availability and Support
ABB’s product lifecycle strategy ensures long-term availability and firmware support.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 07KP64 module?
It serves as a communication processor to interface ABB controllers with external systems and devices. -
Which communication protocols does it support?
MODBUS (RTU), ABB proprietary protocols, and other standard serial communication modes. -
Is the module compatible with other ABB controller families?
It is primarily designed for the Advant Controller 31 series. -
What types of ports are available?
RS232, RS485, and current loop (20 mA) interfaces are selectable. -
How is the module powered?
Power is supplied via the controller backplane at 5 VDC. -
Can this module be used for remote I/O communication?
Yes, it supports serial-based communication for remote devices. -
Is there built-in fault detection?
Yes, status LEDs indicate communication errors and module health. -
What is the typical installation method?
It can be mounted on a DIN rail or installed in a rack chassis. -
Does it offer galvanic isolation?
Yes, communication channels are electrically isolated from the system bus. -
What environments is it suited for?
It operates reliably in standard industrial environments, including high-temperature and high-humidity areas.
Related Models (Same Series or Function)
| Model | Function | Interface Type | System |
|---|---|---|---|
| 07KP93 | Communication Processor | RS485 / MODBUS | Advant Controller 31 |
| 07KP92 | Communication Processor | 20 mA Current Loop | Advant Controller 31 |
| 07KT94 | Central Processing Unit | N/A | Advant Controller 31 |
| 07EB90 | System Bus Interface | Serial | Advant Controller 31 |
| 07AI91 | Analog Input Module | Voltage/Current | Advant Controller 31 |
| 07DO60 | Digital Output Module | Digital | Advant Controller 31 |
